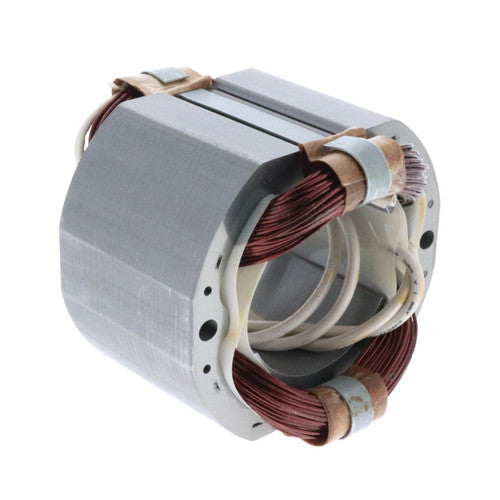

Dewalt 286029-00 Field and Leads Assembly

Product Description

The DEWALT 286029-00 is a factory replacement field and leads assembly designed for use in DEWALT power tools. The field assembly is the electromagnetic winding component inside the motor that generates the magnetic field required to drive the armature and produce rotational output. When a field winding fails due to overheating, short-circuit, or mechanical wear, replacing this assembly restores full motor output without requiring a complete motor or tool replacement. This part is installed by qualified service technicians working on DEWALT power tool repair.

This field and leads assembly is intended for use in DEWALT power tool motor repair applications. It is suited for service centers, authorized repair technicians, and skilled tradespeople who perform their own tool maintenance. The leads are pre-attached, simplifying the reassembly process during motor service. Specific compatible tool models should be confirmed against the DEWALT parts lookup system before ordering.

Key Features

• Factory replacement field and leads assembly for DEWALT power tools
• Pre-attached leads reduce reassembly complexity during motor service
• Restores motor output without full motor or tool replacement
• Direct OEM-style fit for correct electromagnetic performance

Compatibility

Designed as an OEM-style replacement field and leads assembly for compatible DEWALT power tools. Verify fitment using the DEWALT parts lookup system or by cross-referencing your tool model number before installation.

Installation Notes

Installation should be performed by a qualified power tool service technician. Disconnect and unplug the tool completely before disassembling the motor housing. Handle field windings carefully to avoid damaging insulation on the wire coils. Follow the tool manufacturer service documentation for correct lead routing and connection points during reassembly.

Technical Specifications

• Part Type: Field and Leads Assembly

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 286029-00
