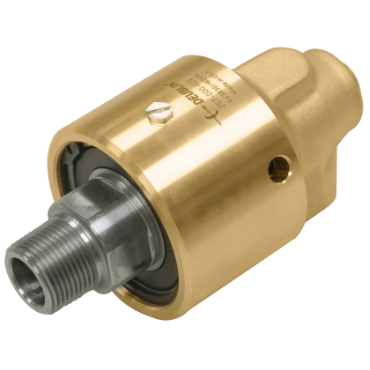

Deublin Co. 357-000-019 Water Rotary Unit

Product Description

The Deublin Co. 357-000-019 is a Water Rotary Unit designed for various applications. This rotary union features silicone carbide to carbon graphite mechanical seals, suitable for water use and capable of handling abrasive environments.

• Mono-Flow and Duo-Flow configurations available
• Replaceable seals for longevity
• Maximum water pressure rating of 150 psi

Product Highlights

This rotary unit works well in industries such as printing, paper production, rubber processing, and plastics.

Product Information

Standard Information

• Brand: Deublin Co.
• Part Number: 100168424

Technical Specifications

• Flow Type: Mono-Flow
• Unit Size: 1 inch
• Assembled Length: 6 13/16 inches
• Shaft Extension Length: 1 1/8 inches
• Shaft Thread Size: 1 1/2-12 UNF
• Max RPM: 3,000
• Inlet Port: 1 inch
• Weight: 6.35 LB
• Housing Material: Forged Brass
• Shaft Material: Stainless Steel
• Right/Left Hand: Right Hand
• Inlet Port Type: NPT
• Outlet Port Type: UNF
• Front of Body to Port Centerline: 4 1/4 inches
