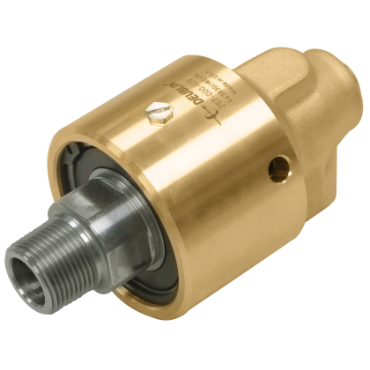

Deublin Co. 257-000-020 Water Rotary Unit

Product Description

The Deublin Co. Water Rotary Unit, MPN 257-000-020, is a reliable rotary union designed for water applications. This unit incorporates advanced sealing technology, making it ideal for various industrial uses.

• Mono-Flow configuration for straightforward application.
• Available in both U.S. and metric thread specifications.
• Replaceable seals increase longevity and efficiency.

Product Highlights

Designed for sectors including printing, rubber, and plastics, this rotary unit can effectively handle water application needs.

Product Information

Standard Information

• Brand: Deublin Co.
• Part Number: 100168085

Technical Specifications

• Shaft Extension Length: 7/8 inches
• Series: 57 Series
• Housing Material: Forged Brass
• Maximum RPM: 1,500 rpm
• Shaft Material: Stainless Steel
• Assembled Length: 5 9/16 inches
• Inlet Port: 3/4 inches
• Shaft Thread Size: 3/4 inches NPT
• Inlet Port Type: NPT
• Unit Size: 3/4 inches
• Hand Orientation: Right Hand
• Front of Body to Port Centerline: 4 1/16 inches
• Flow Type: Mono-Flow
• Outlet Port Type: NPT
• Weight: 4.0 LB
