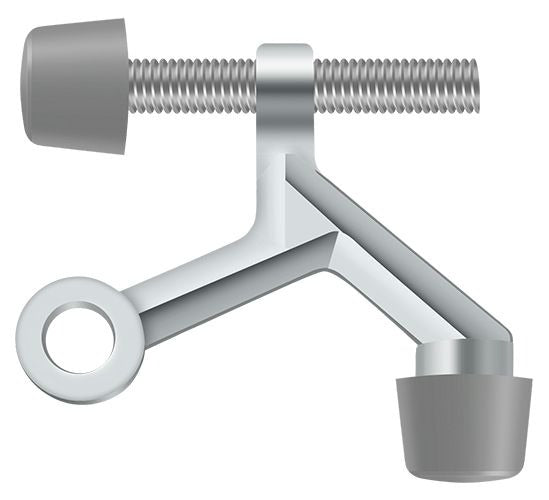

Deltana ZHP70U26 Hinge Pin Door Stop Bright Chrome

Product Description

The DELTANA ZHP70U26 is a hinge-mounted hinge pin door stop finished in bright chrome over a zinc die-cast body. It installs directly onto an existing door hinge pin, eliminating the need for wall or floor fasteners. The stop limits door travel by engaging the door frame or casing before the door or hardware contacts the wall. At 2.25 inches long, 2 inches wide, and 0.5 inches tall, it is a compact, low-profile solution weighing 0.1 pounds. Locksmiths, carpenters, and general contractors typically specify this type of stop where floor or baseboard clearance is limited or wall protection is a priority.

This hinge pin stop is suited for residential and light commercial interior door applications. It mounts to a standard door hinge pin without drilling additional holes in walls, baseboards, or floors, making it well-suited for retrofit installations and new construction alike. The bright chrome finish coordinates with chrome-plated door hardware sets. Sold individually, it fits most standard residential hinges where hinge pin access is not obstructed by a security stud or non-removable pin.

Key Features

• Hinge-mounted design requires no wall or floor drilling for installation
• Zinc die-cast construction provides a solid, durable body at low weight
• Bright chrome finish for compatibility with chrome door hardware sets
• Compact footprint: 2.25 inches x 2 inches x 0.5 inches
• Lightweight at 0.1 pounds, adding negligible load to the hinge
• Sold individually, one piece per order unit

Compatibility

Designed as an OEM-style replacement or new-installation hinge pin door stop for standard residential interior door hinges where the hinge pin is removable and accessible.

Installation Notes

Installation is performed by a carpenter, locksmith, or qualified handyman and requires no power tools. Remove the hinge pin from the target hinge, slide the stop body onto the pin, and re-seat the pin into the hinge barrel. Confirm the stop engages the door frame or casing at the desired travel limit before finalizing placement. Do not install on hinges equipped with non-removable or security-stud pins, as forced removal can damage the hinge.
