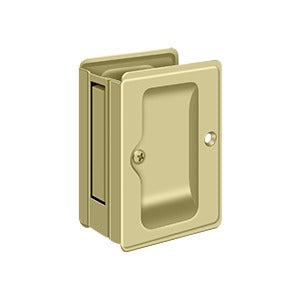

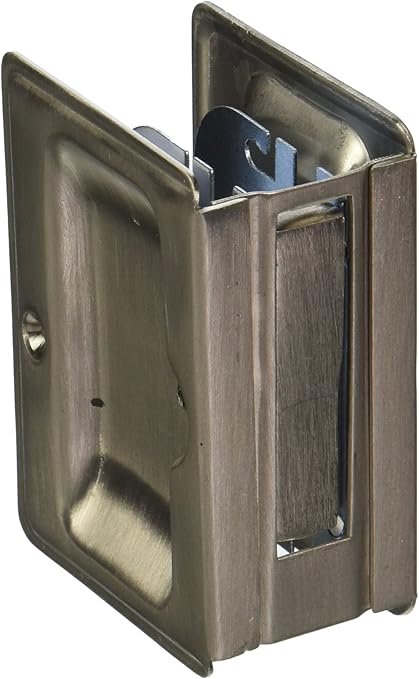

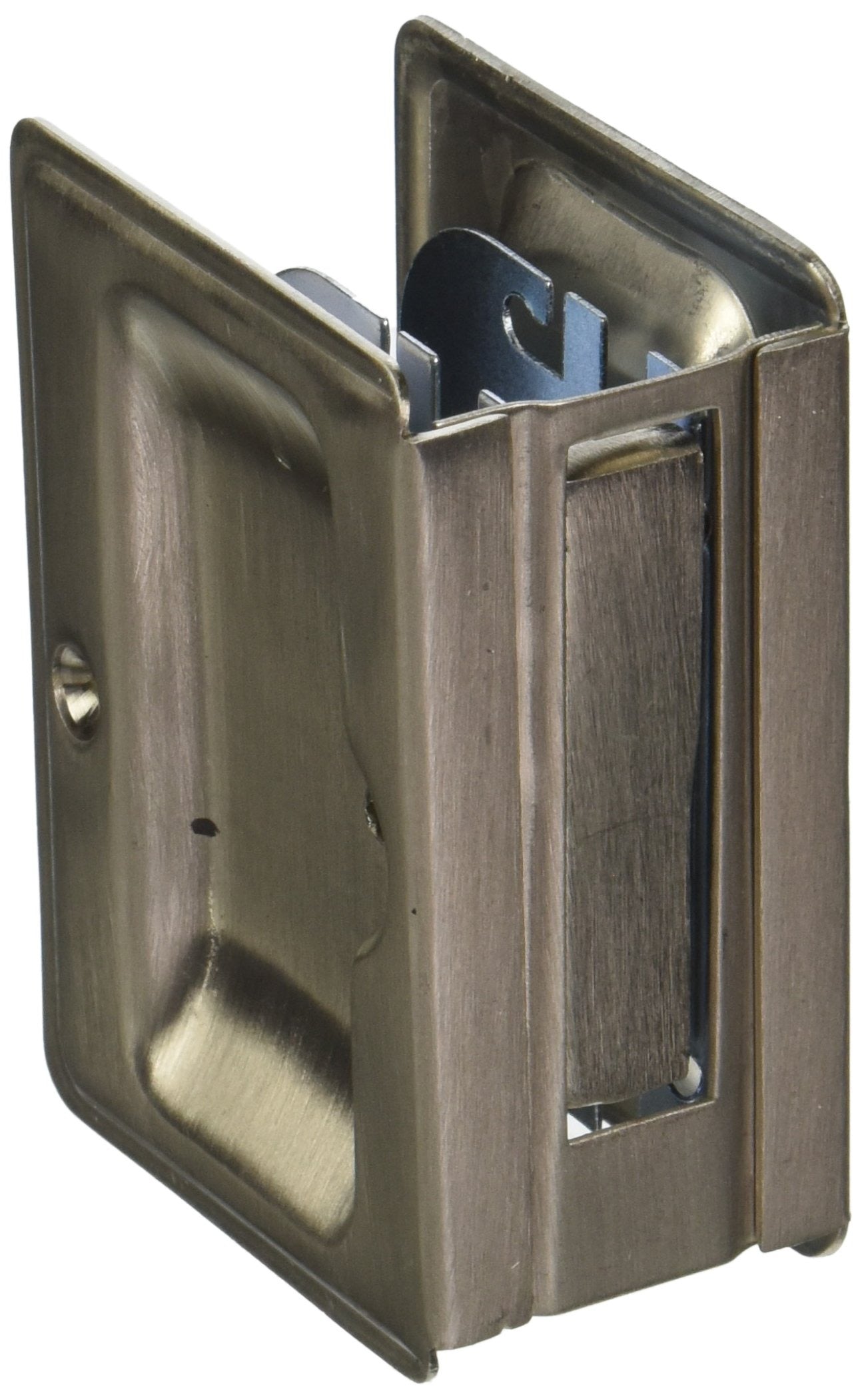

Deltana SDPA325U15 Adjustable Passage Hd Pocket Lock

Product Description

The DELTANA SDPA325U15 is an adjustable heavy-duty pocket door lock in the passage function, designed for interior sliding pocket doors in residential and light commercial settings. The lock measures 3.25 inches by 2.25 inches overall and fits doors ranging from 1.375 to 1.75 inches thick, making it a versatile choice across common door thicknesses. Constructed from alloy steel, this hardware is built for long-term cycle use in pocket door applications. It ships with all required mounting hardware included, reducing the need for additional fasteners on the job.

This pocket lock is suited for interior passage applications where a latch or privacy function is not required - hallways, closets, and room dividers being the most common install scenarios. The adjustable design accommodates a range of door thicknesses without shimming or custom fitting. Residential trim carpenters, finish carpenters, and general contractors are the typical installers. The U15 finish designation indicates a brushed nickel appearance, consistent with the Deltana finishing line for architectural door hardware.

Key Features

• Adjustable fit for doors 1.375 to 1.75 inches thick
• Passage function - no locking mechanism, free movement in both directions
• Overall dimensions of 3.25 inches by 2.25 inches
• Alloy steel construction for durability
• Includes mounting hardware in the package
• U15 brushed nickel finish

Compatibility

Designed as an OEM-style replacement or new-installation pocket door lock for standard residential and light commercial pocket door assemblies accepting a 3.25 inch by 2.25 inch passage lock with door thickness between 1.375 and 1.75 inches.

Installation Notes

Installation is typically performed by a finish carpenter or general contractor during door hardware rough-in or finish stages. Power down any adjacent low-voltage door sensors or electric strikes before working in the door frame cavity. Use the included mounting hardware and follow the door manufacturer's mortise or surface-mount specifications for pocket door edge hardware. Do not force the adjustable mechanism beyond its rated thickness range, as this can compromise the latch engagement.
