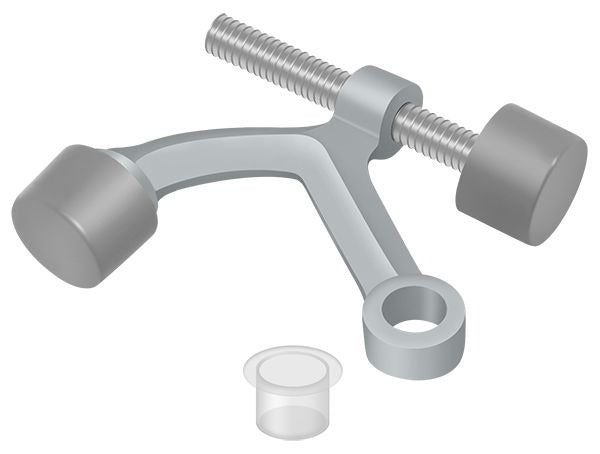

Deltana HP70U26D Hinge Pin Door Stop Satin Chrome

Product Description

The DELTANA HP70U26D is a hinge-mounted hinge pin door stop finished in satin chrome. It installs directly onto an existing door hinge pin, eliminating the need for additional wall or floor anchors. The stop limits door travel to protect walls, baseboards, and adjacent hardware from impact damage. At 3.75 inches long, 3.25 inches wide, and 0.6 inches in height, it presents a low-profile footprint suited to both residential and light commercial door applications. Installation requires no specialty tools and is typically completed by a finish carpenter, locksmith, or general contractor during hardware trim-out.

The HP70U26D suits interior door installations where floor stops or wall bumpers are impractical or undesirable. Common applications include entry doors, office doors, and residential interior passage doors. The hinge-mounted design keeps the stop concealed within the door hardware profile, making it a practical choice in high-traffic corridors or finished spaces where a floor-mounted stop would present a trip hazard.

Key Features

• Hinge pin mounting — no wall or floor drilling required beyond existing hinge hardware
• Satin chrome finish for corrosion resistance and compatibility with common hardware finishes
• Low-profile body at 0.6 inches height minimizes visual footprint
• Sold individually, suitable for single-door retrofit or new installation
• Compact 3.75 inch by 3.25 inch form factor fits standard residential and commercial door hinges

Compatibility

Designed as an OEM-style hinge pin door stop for standard residential and light commercial door hinges where a hinge-mounted stop is the specified hardware type.

Installation Notes

Installation is performed by a finish carpenter, locksmith, or qualified handyman. The stop clips onto the existing hinge pin — remove the door from service or secure it in the open position before disassembling the hinge pin. Confirm the hinge pin diameter matches the stop hardware before installation. Follow local building codes for door hardware requirements in commercial applications.
