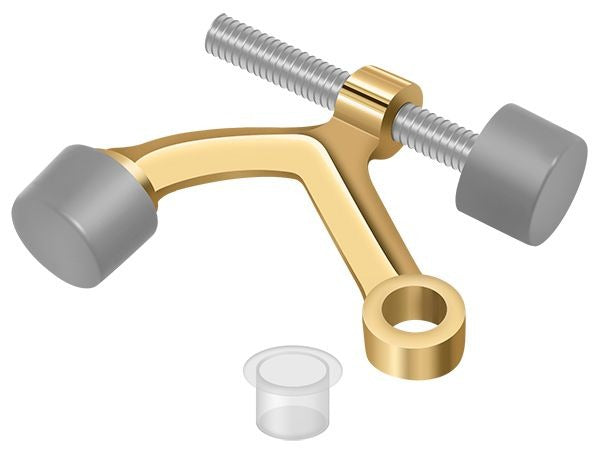

Deltana HP70CR003 Hinge Pin Stop Lifetime Brass

Product Description

The DELTANA HP70CR003 is a hinge-mounted hinge pin stop designed to control door travel by limiting how far a door swings open. The stop installs directly onto the hinge pin, eliminating the need for wall- or floor-mounted hardware. It measures 3 inches in length, 2 inches in width, and 0.6 inches in height, making it a compact, low-profile solution. Finished in Lifetime Brass, the unit suits interior door applications where a durable, corrosion-resistant appearance is required. This type of hardware is typically installed by carpenters, general contractors, or finish tradespeople during door hardware rough-in or finish stages.

The HP70CR003 is suited for residential and light commercial interior door installations where controlling door swing is necessary to protect walls, trim, or adjacent hardware. Its hinge-mounted design makes it compatible with standard full-mortise hinges that use a removable hinge pin. The Lifetime Brass finish coordinates with common architectural brass hardware lines. It is sold as a single unit (EA) and does not require additional mounting hardware beyond the existing hinge assembly.

Key Features

• Hinge pin mounting eliminates need for wall or floor stop hardware
• Compact profile: 3 inches long, 2 inches wide, 0.6 inches high
• Lifetime Brass finish for long-term appearance retention
• Sold individually, compatible with standard removable hinge pin designs
• Lightweight construction at 0.1 pounds

Compatibility

Designed as an OEM-style replacement or new-install hinge pin stop for standard full-mortise hinges with removable hinge pins in residential and light commercial door applications.

Installation Notes

Installation is performed by removing the hinge pin from an existing full-mortise hinge, threading or clipping the stop onto the pin, and reinstalling the pin into the hinge barrel. No specialized tools are required beyond a hammer or pin punch to drive the hinge pin. Ensure the door is properly supported before removing the hinge pin to prevent the door from shifting. Verify the stop position controls door travel without binding against the hinge or door frame.
