Delta R3709-PX One Handle Flexible Mount with Hand Shower Rough

Product Description

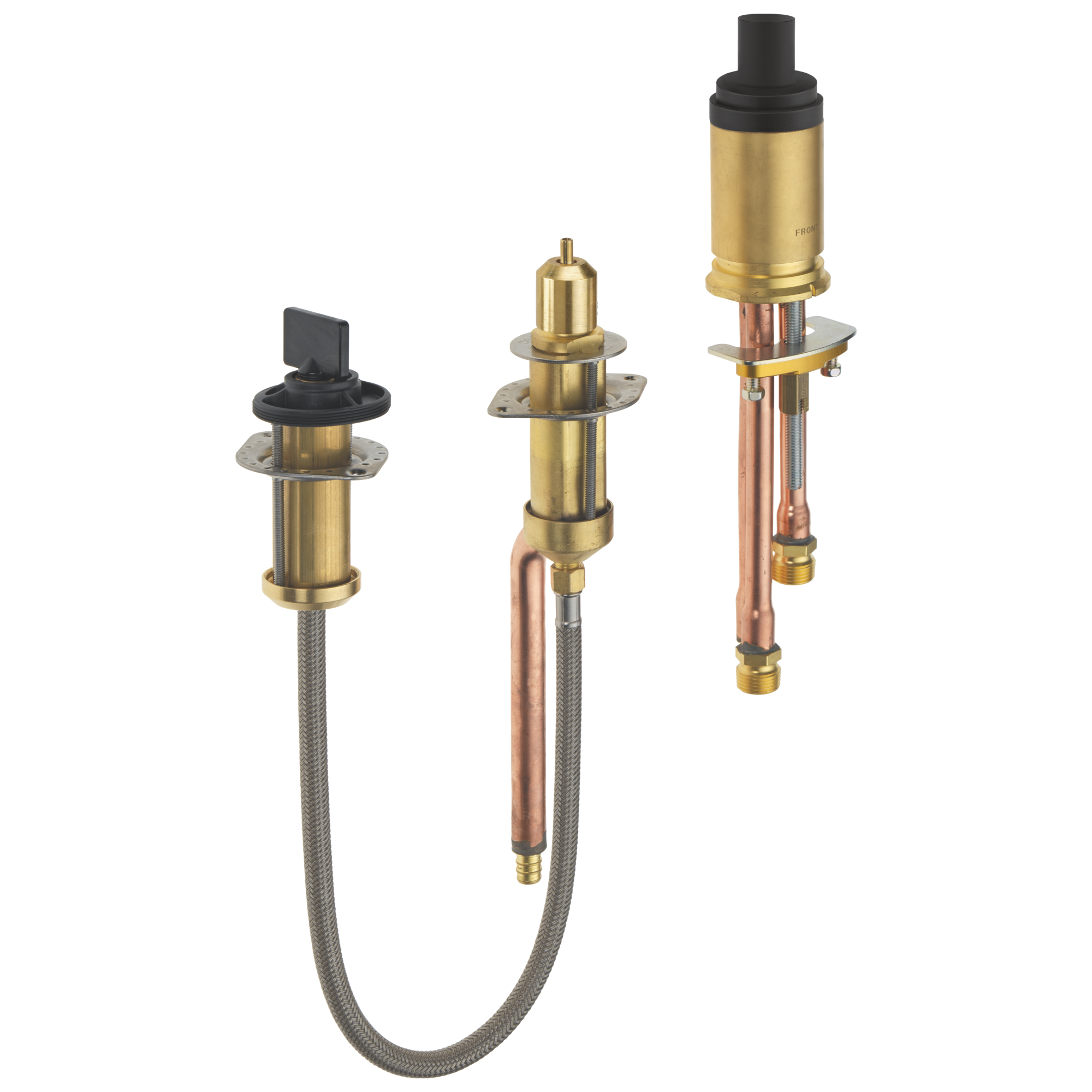

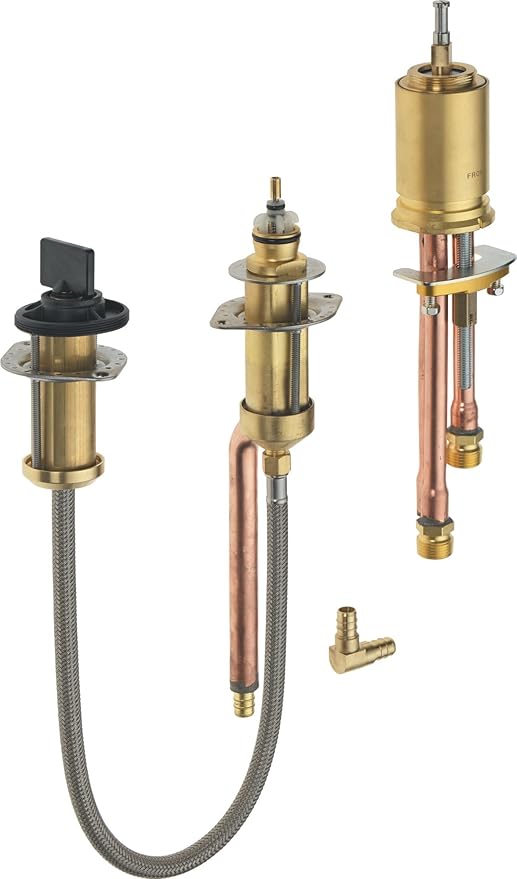

The Delta R3709-PX rough-in kit is designed for 3-hole, single handle deck mount Roman tub faucets that come with a hand shower. This kit supports a 3-hole flexible deck or ledge mount installation. Note that a separate trim kit needs to be purchased to complete the setup.

• Rough-in kit only; trim kit must be purchased separately.
• Designed for 3-hole flexible deck or ledge mount installation.
• Includes two flexible supply hoses to connect to stop valves.

Product Highlights

This rough-in kit simplifies installation for tub faucets while ensuring reliable connections and functionality.

Product Information

Standard Information

• Rough-in Kit: Yes
• Trim Kit Requirement: Required

Technical Specifications

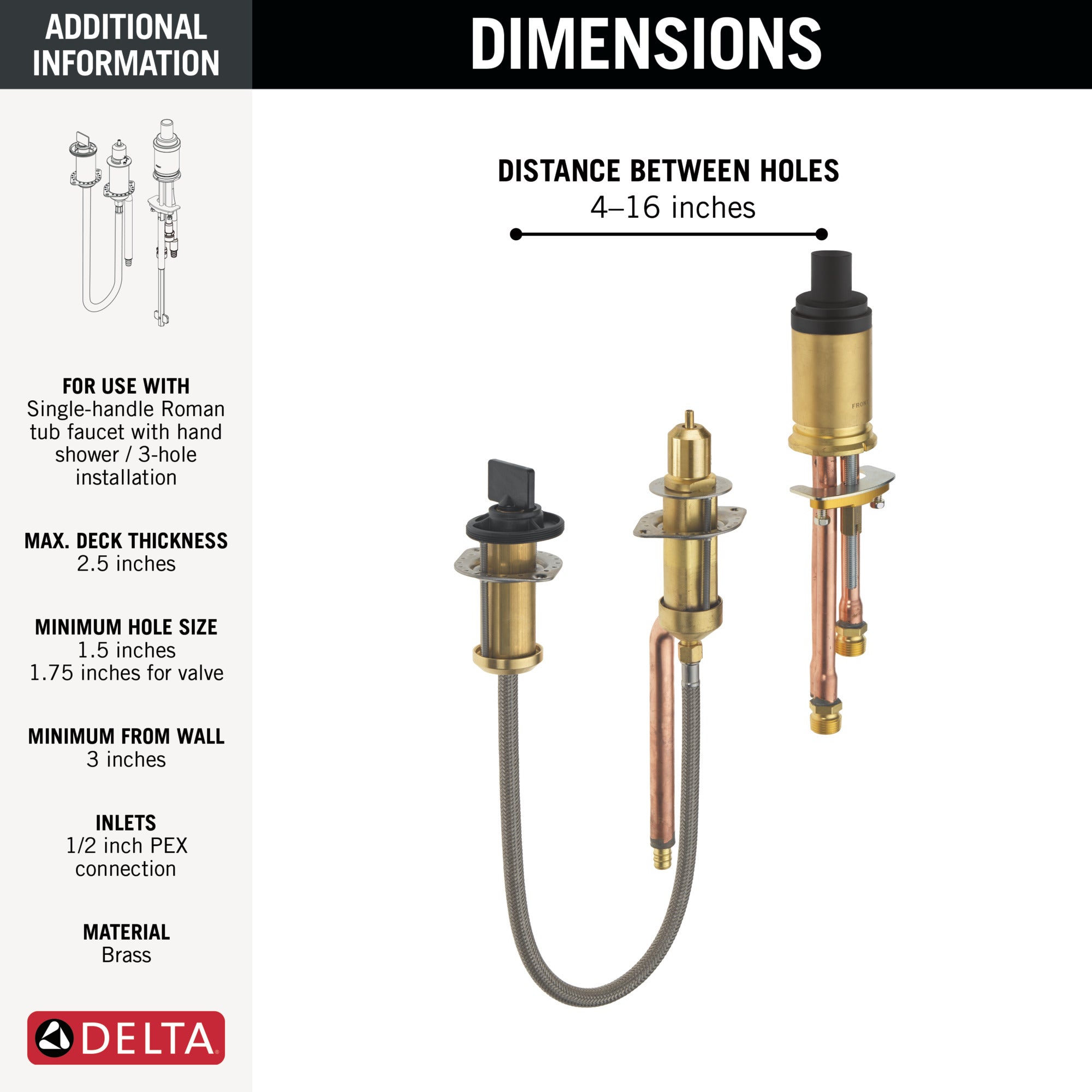

• Installation: 3-hole flexible deck or ledge mount installation
• Handle Spacing: Refer to trim kit specifications for best fit
• Supply Hoses: Two flexible hoses connecting to stop valves
• Connection: 1/2-inch PEX crimp connection between valve body and spout body
• Maximum Deck Thickness: 2-1/2 inches
• Tubing Connection: 1/2-inch PEX tubing for flexible spacing
• Material: Solid fabricated brass for end valves and spout body
• Diverter: Auto resetting diverter included
• Overall Height: 7-9/16 inches
• Valve Type: Ceramic disc
• Water Connection Type: PEX
• Approved for Commercial Use: No
• Certifications: ASME, CSA
• Manufacturer Warranty: Limited lifetime
• Number of Ports: 3
• Package Quantity: 1
• Suitable For Use With: 3-hole, single handle deck mount Roman tub faucets with hand shower
