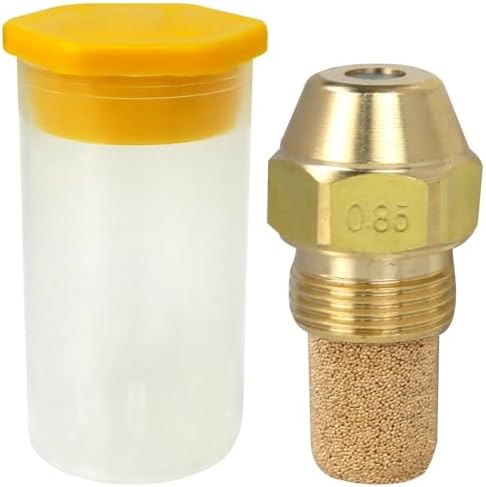

Delavan 85-45B1 Nozzle .85 GPH 45 Degree

Product Description

The DELAVAN 85-45B1 nozzle is designed with bi-metal construction, featuring a brass body and stainless steel metering parts for precision. This Type B solid cone nozzle with a .85 GPH flow rate and 45° spray angle is designed with short tangential slots to reduce plugging. It also features rolled threads that resist chipping.

• Solid flame pattern
• Features rolled threads that resist chipping
• Brass body transmits heat to reduce varnish and oil residue buildup

Product Highlights

Durable brass and stainless steel construction ensures consistent performance. Ideal for oil burners requiring a solid flame pattern.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 85-45B1
• Country of Origin: United States

Technical Specifications

• Style: Solid flame pattern
• Size (in GPH): .85
• Flame Apex Angle: 45 deg
• Type: Type B Solid Cone
• Material: Brass
• Flow Rate: 0.85 gph
• Spray Angle: 45 deg
• Dimensions: H: 1.625 in
• W: 0.75 in
• D: 0.75 in
