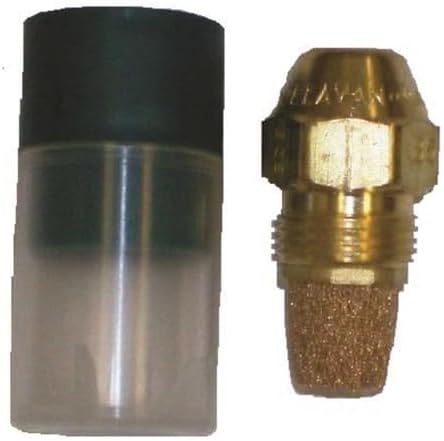

Delavan 75-80W Nozzle Oil 0.75GPH 80DEG

Product Description

The DELAVAN 75-80W oil nozzle features a stainless-steel, hollow orifice and a brass body. Type W nozzles can be used in place of either solid or hollow cone nozzles between 0.40 and 8.00 GPH. It is a boiler replacement part compatible with an oil-burning appliance. Precise spray angles and optional spray uniformity are achieved through a new machining process.

• Precise spray angles and optional spray uniformity through new machining process
• Reduced distributor size with shorter tangential slots to avoid plugging
• Aerodynamic body configuration
• Sintered filter for maximum protection
• ISO 9001 certified

Product Highlights

The DELAVAN oil nozzle has rolled threads to avoid metal chips and burrs. It has a reduced distributor size with shorter tangential slots to avoid plugging.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 75-80W

Technical Specifications

• Material: Brass, Stainless Steel
• Brand: DELAVAN
• Exterior Finish: Brass, Stainless Steel
• Inlet Connection Size: 0.75 Inches
• Inlet Connection Type: Threaded
• Number of Ports: 1
• Outlet Connection Size: 0.75 Inches
• Specification Met: ASME, ASTM, MSS
