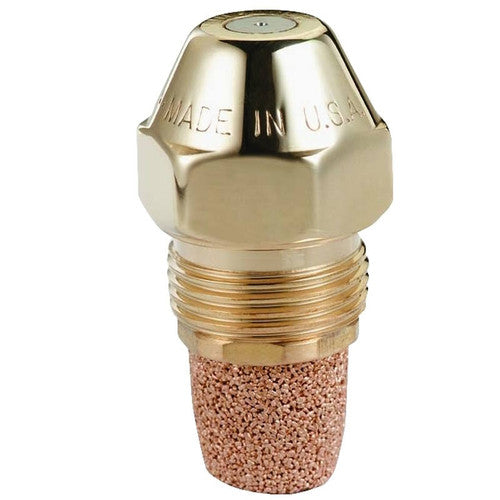

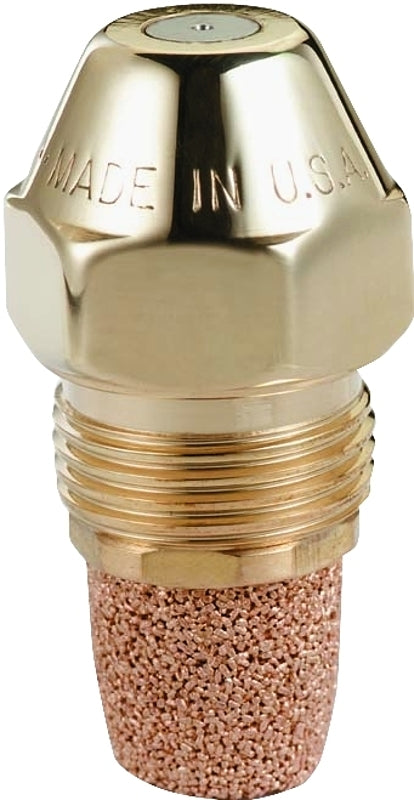

Delavan 0.75-90-B 0.75 GPH 90 Deg B Solid Oil Burner Nozzle

Product Description

The DELAVAN 0.75-90-B is a 0.75 GPH, 90 degree, solid cone type B spray nozzle. It produces a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates. Provides smooth ignition and efficient combustion, particularly in larger burners.

• Produces a spray that distributes droplets fairly uniformly throughout the complete pattern.
• The spray pattern becomes progressively more hollow at higher flow rates.
• Provides smooth ignition and efficient combustion, particularly in larger burners.

Product Highlights

The DELAVAN 0.75-90-B nozzle is designed for smooth ignition and efficient combustion in larger burners, with a solid cone spray pattern.

Product Information

Standard Information

• Brand: DELAVAN
• Manufacturer Part Number: 0.75-90-B

Technical Specifications

• Type: Solid Cone Type B Spray Nozzle
• Flow Rate: 0.75 gph
• Pressure: 100 psi
• Angle: 90 deg
• Spray Angle: 90 Deg
• Spray Pattern: B, Solid Cone
• Manufacturer Name: Delavan
• Material: Brass Body, Steel Orifice Disc
• Temperature Rating: 80 Deg F
• Application: Residential
