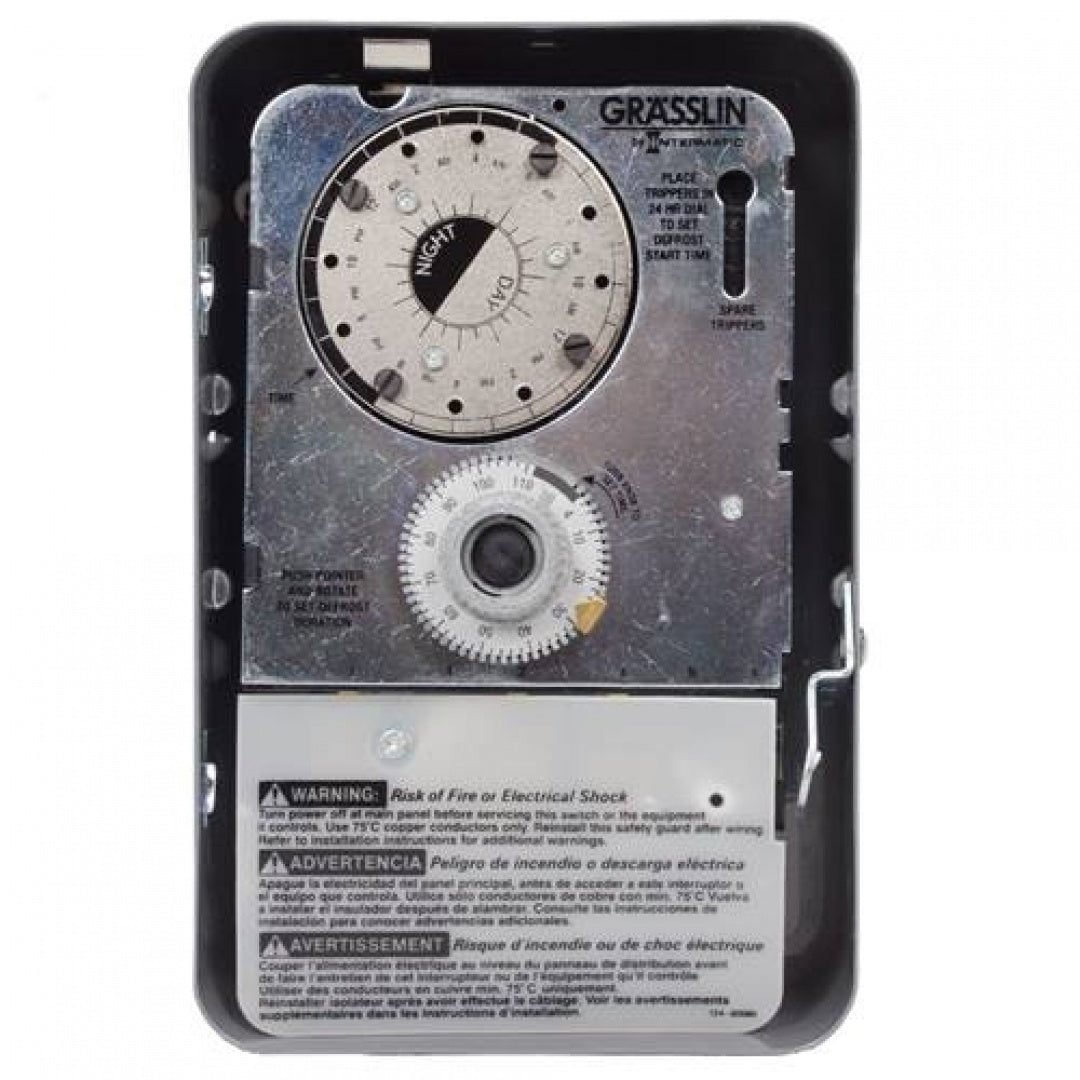

INTERMATIC G8145-20 208-240V MECH DEFROST CONTROL

Product Description

The INTERMATIC G8145-20 is a mechanical defrost control designed for 208 to 240 volts. This control operates on a timer mode with settings from four to one hundred ten minutes for defrost cycles. It includes a NEMA 1 enclosure which allows operation in various environments while protecting the internal components.

• Designed for 208 to 240 VAC systems
• Programmable defrost durations in two-minute increments
• Heavy-duty contacts rated at 40 A

Product Highlights

This defrost control is suitable for both indoor and industrial applications, offering reliable performance and easy installation.

Product Information

Standard Information

• Manufacturer: INTERMATIC
• Series: G8000

Technical Specifications

• Amperage Rating: 40 A
• Contact Form: 1NC-1NO
• Defrost Time: 4 to 110 min
• Dimensions: 5 in L x 3 in W x 7-3/4 in H
• Enclosure Type: NEMA 1
• Horsepower: 2 hp
• Mounting Type: Panel
• Operation Mode: 110 min
• Temperature Rating: -40 to 104 deg F
• Voltage Rating: 208 to 240 VAC
