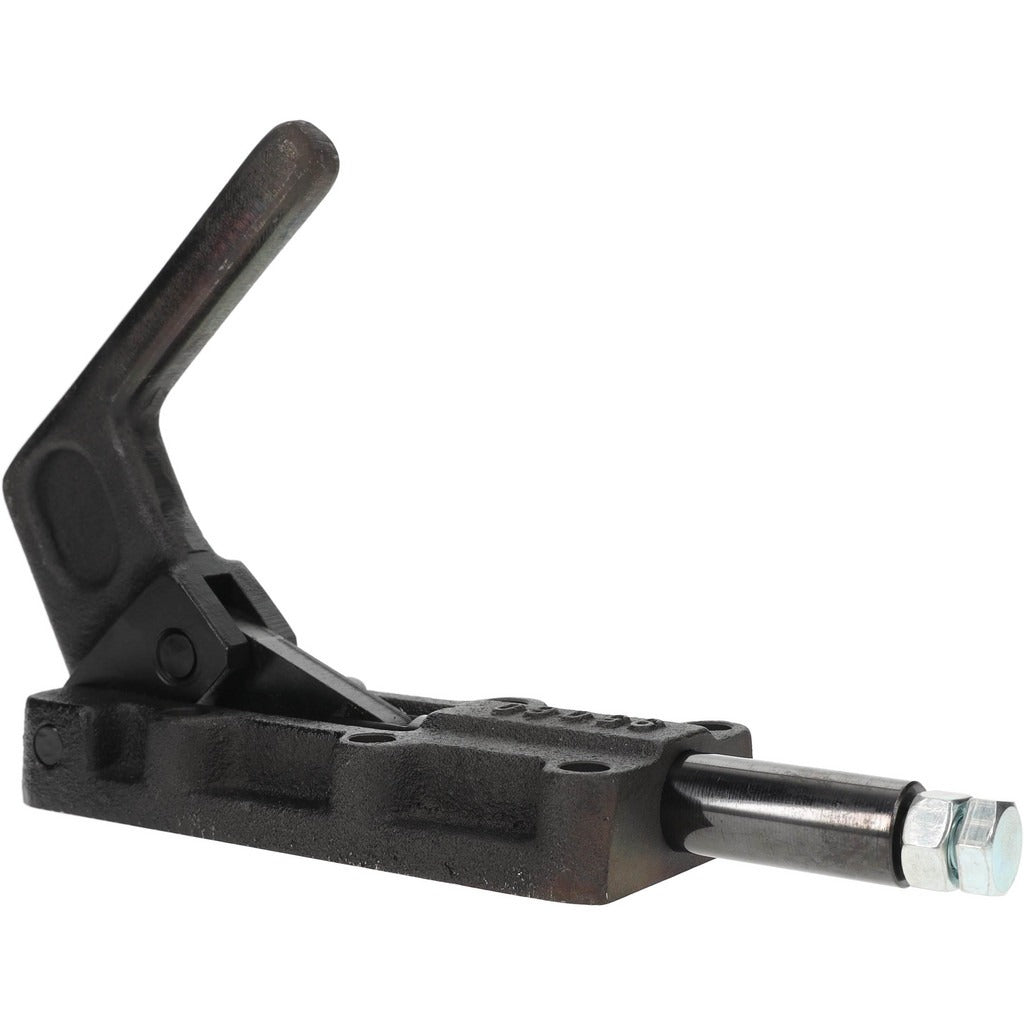

De-sta-co 95060 Straight Line Action Clamp 3960 Lb

Product Description

The DE-STA-CO 95060 is a standard straight line action clamp designed for industrial workholding applications requiring high clamping force and consistent plunger travel. It delivers a load capacity of 3,960 lb (17,600 N) with 2.36 inches of plunger travel, making it well suited for fixtures, jigs, and assembly tooling where repeatable clamping is critical. The round plunger measures 0.87 inches in diameter and features an internal M12x1.75 threaded end for spindle adjustment. The body is constructed from carbon steel and mounts via a flanged base with six mounting holes. This clamp is typically installed by tooling engineers, machine builders, or maintenance technicians in manufacturing and fabrication environments.

The 95060 is used in production fixtures, welding positioners, machining jigs, and assembly stations where a straight-line clamping motion is required. The flanged base provides a stable, low-profile mounting footprint. With a straight handle and black handle finish, it integrates cleanly into manual clamping setups on workbenches, tombstones, and custom fixture plates. The 2.17-inch bolt pattern in both length and width directions allows straightforward alignment to standard fixture tooling grids.

Key Features

• 3,960 lb (17,600 N) load capacity for demanding workholding applications
• 2.36 inches of plunger travel with a round, internally threaded M12x1.75 plunger
• Flanged base with six mounting holes for rigid, stable installation
• Carbon steel construction for durability in industrial environments
• Straight handle design with black handle color
• Plunger centerline height of 0.63 inches for low-profile fixture integration

Compatibility

Designed as a standard straight line action clamp for industrial fixture and workholding applications. Suitable for use with fixture plates, welding jigs, machining tombstones, and assembly tooling that accept a flanged-base clamp with a 2.17-inch mounting hole pattern.

Installation Notes

Install using appropriately sized fasteners through the six flanged base mounting holes, torqued per the fixture design requirements. Ensure the mounting surface is flat and rigid to prevent clamp body deflection under load. Adjust the M12x1.75 internally threaded plunger spindle to set the correct clamping depth before locking. Verify that no personnel are in the clamping path before cycling the clamp under load.
