De-sta-co 810151 Power Clamp Reed Switch Spst No

Product Description

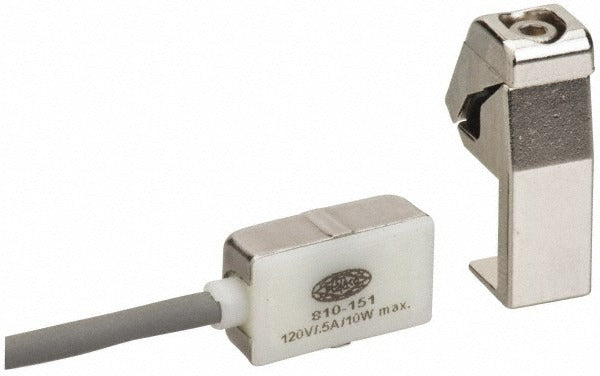

The DE-STA-CO 810151 is a reed-style position sensor switch designed for use with pneumatic power clamps. It features a single-pole single-throw (SPST) normally open contact configuration and operates across a wide voltage range of 5 to 120 volts AC or DC. Maximum current draw is 0.5 amps, with a minimum of 0.005 amps, and maximum wattage is 10 watts. The switch includes an MOV and LED indicator for circuit protection and visual status confirmation. Its compact body measures 0.93 inches long, 0.53 inches wide, and 0.37 inches high, making it suitable for tight mounting positions on automated clamping fixtures.

This switch is intended for use with pneumatic power clamps equipped with the -MR option, as specified by DE-STA-CO. It is typically found in industrial automation and manufacturing environments where confirming clamp position is critical to process control. A 9-foot wire lead provides adequate reach in most fixture and tooling installations. Licensed automation technicians and fixture builders are the primary installers of this device.

Key Features

• SPST normally open reed contact - closes when magnetic field from clamp actuator is detected
• Wide operating voltage range: 5 to 120 volts AC/DC
• Maximum current: 0.5 amps; minimum current: 0.005 amps
• Built-in MOV surge protection and LED status indicator
• Compact body: 0.93 x 0.53 x 0.37 inches for tight-clearance mounting
• 9-foot wire lead for flexible routing in fixture assemblies

Compatibility

Designed for use with DE-STA-CO pneumatic power clamps configured with the -MR option.

Installation Notes

Installation should be performed by a qualified automation or controls technician. De-energize and depressurize the pneumatic circuit before mounting or wiring the switch. Follow applicable NEC guidelines when routing and terminating the signal wire. Verify the clamp is equipped with the required -MR magnetic ring option before attempting to commission the sensor.
