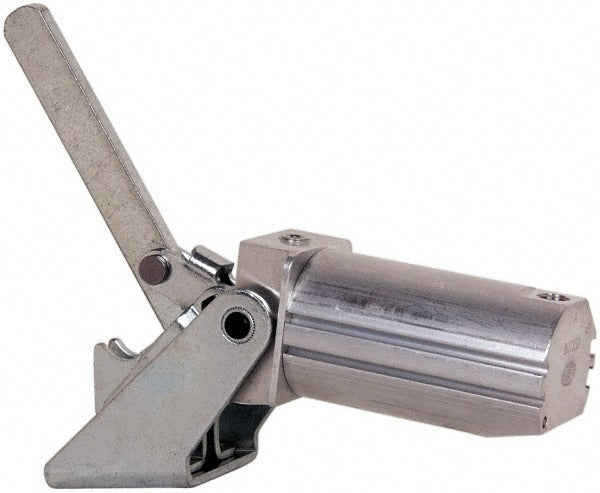

De-sta-co 807-S Pneumatic Hold Down Toggle Clamp 500 Lb

Product Description

The DE-STA-CO 807-S is a pneumatic hold down toggle clamp designed for workholding and fixturing applications in industrial and manufacturing environments. It uses compressed air to actuate a solid bar arm through a 103-degree opening arc, generating up to 500 lb of inner holding capacity at a maximum operating pressure of 145 psi. The cylinder bore measures 1.26 inches, and the height under bar is 1.38 inches, making it well suited for low-profile clamping setups. A 1/8 NPT port connects the clamp to a shop air supply. Licensed machinists, toolmakers, and industrial maintenance technicians are the typical installers and service personnel for this product.

The 807-S is used in horizontal mounting configurations on fixtures, jigs, welding tables, and automated production lines where consistent, repeatable clamping force is required. The open bar end style and 2.51-inch bar extension provide clearance flexibility for various workpiece geometries. The clamp accepts round and T-slot sensor configurations, allowing integration with pneumatic or electrical feedback systems on automated lines. It is compatible with operating temperatures from 14 degrees F to 194 degrees F, making it suitable for most indoor industrial conditions.

Key Features

• 500 lb inner holding capacity at 145 psi maximum air pressure
• 103-degree bar opening arc with solid bar and open bar end style
• 1/8 NPT air port for standard shop air connection
• Horizontal mounting orientation with 0.75-inch center-to-center mount hole spacing (length) and 1.25-inch spacing (width)
• Round and T-slot sensor compatibility for use in automated and feedback-controlled systems
• Includes bolt retainer; operating range 14 degrees F to 194 degrees F

Compatibility

Designed as an OEM-style pneumatic hold down toggle clamp for horizontal-mount industrial fixturing and workholding systems requiring a 1/8 NPT air supply connection.

Installation Notes

Installation is typically performed by toolmakers, fixture builders, or industrial maintenance technicians. Depressurize the air supply and verify the line is locked out before mounting or servicing the clamp. Use appropriately sized fasteners through the 0.28-inch mounting holes and confirm the clamp is seated flat before connecting the air line. Follow applicable workplace safety and pneumatic system codes for pressure line connections and sensor wiring.
