De-sta-co 801532 Swing Clamp Arm Aluminum Blank 10-32 Port

Product Description

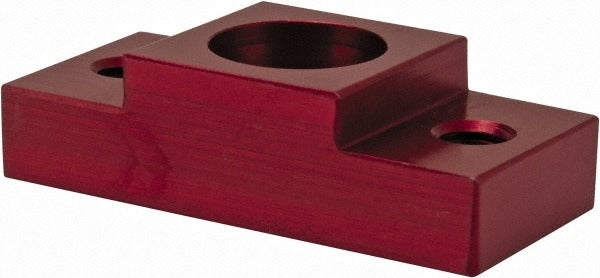

The DE-STA-CO 801532 is an aluminum blank swing clamp arm designed for use with pneumatic or hydraulic swing clamp bodies in fixturing and workholding applications. The arm measures 1.3701 inches in overall length and 0.62 inches in overall width, with a height range of 0.25 to 0.39 inches. The blank arm profile allows the installer to machine or configure the contact surface to match the specific workpiece geometry. The 10-32 port thread size is machined into the arm for integration with compatible clamp body assemblies. This component is typically installed and adjusted by tooling engineers, fixture builders, and industrial maintenance technicians.

This swing clamp arm is suited for production fixturing environments where consistent, repeatable clamping is required. The blank arm style is selected when a standard nose or contact pad configuration does not match the workpiece profile, making it a common choice for custom fixture builds in machining, welding, and assembly operations. It is compatible with DE-STA-CO Series 8015, 8016, 8115, and 8116 swing clamp bodies, making it a direct-fit replacement or spare for those existing installations.

Key Features

• Blank arm profile - field-machinable contact surface for custom workpiece fit
• Aluminum construction - lightweight and corrosion-resistant for fixture environments
• 10-32 port thread size for secure attachment to compatible clamp body
• Height adjustable from 0.25 to 0.39 inches to accommodate part variation
• Standard length arm at 1.3701 inches OAL for drop-in fitment on compatible bodies
• Overall width of 0.62 inches for compact fixture layouts

Compatibility

Designed for use with DE-STA-CO Series 8015, 8016, 8115, and 8116 swing clamp bodies.

Installation Notes

Installation is performed by tooling engineers or fixture technicians. Before removing or replacing the clamp arm, de-energize all pneumatic or hydraulic supply lines and relieve system pressure completely. The 10-32 port thread should be engaged with proper tooling to avoid cross-threading; do not overtighten. If the blank arm is to be machined for a custom contact profile, complete all machining prior to final installation in the fixture.
