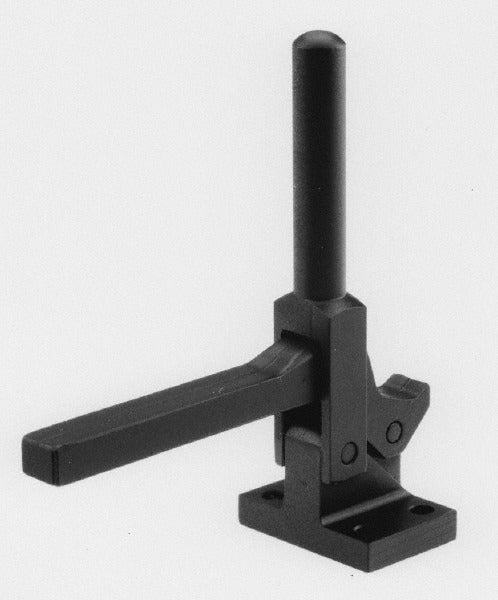

De-sta-co 7-60 Toggle Clamp Vertical 1600 Lb Flanged Base

Product Description

The DE-STA-CO 7-60 is a manual hold-down toggle clamp designed for vertical clamping applications in industrial fixtures, jigs, and workholding setups. It delivers a holding capacity of 1,600 pounds (7,120 N) through a solid carbon steel bar with a closed bar end. The handle and bar each travel 80 degrees, providing positive over-center locking action. A zinc finish protects the carbon steel construction against corrosion in shop environments. This clamp is typically installed by machinists, tool and die makers, and fixture builders working in manufacturing or fabrication settings.

The 7-60 fits applications requiring a flanged base mount with four mounting holes. The flanged base measures 2.88 inches wide with mounting hole spacing of 1.62 inches lengthwise and 2.12 inches widthwise. Mounting holes are 0.41 inches in diameter. The clamp stands 9.5 inches overall in height and 7.4 inches in overall length, with 2.5 inches of clearance under the bar. It is suited for production welding fixtures, assembly jigs, and machining workholding where repeatable clamping force and fast operator engagement are required.

Key Features

• 1,600 lb (7,120 N) holding capacity for heavy-duty workholding
• Vertical handle orientation with straight handle style and 80-degree handle movement
• Solid bar with closed end and 80-degree bar opening
• Flanged base with four mounting holes for secure fixture mounting
• Carbon steel construction with zinc finish for corrosion resistance
• Front of base to toggle tip: 4.38 inches

Compatibility

Designed as an OEM-style replacement or direct-fit toggle clamp for industrial fixtures and workholding jigs requiring a vertical, flanged-base hold-down clamp with a 1,600 lb holding capacity.

Installation Notes

Installation is performed by fixture builders or maintenance technicians using standard drill and fastener tooling for the four flanged base mounting holes. Power down or de-energize any automated equipment before servicing or repositioning the clamp in an active fixture. Verify that the mounting surface can support the full rated clamping load before placing the clamp into service. Confirm over-center lock engagement by cycling the handle through its full 80-degree travel before applying workpiece pressure.
