De-sta-co 650 Straight Line Action Clamp 16000 Lb

Product Description

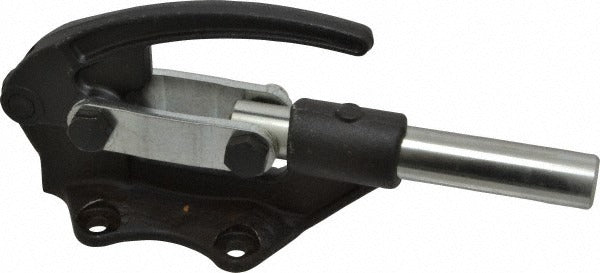

The DE-STA-CO 650 is a heavy-duty straight line action clamp rated for 16,000 pounds (71,171.5 N) of load capacity. It uses a straight-handle, inline clamping motion to apply direct holding force through a round plunger with internal 5/8-11 threading. The flanged carbon steel base mounts with four bolts for secure fixture in production or fabrication setups. The plunger travels 3 inches (76.2 mm) and measures 0.99 inches (25.15 mm) in diameter, making it well suited for workholding, jigs, and assembly fixtures where consistent, repeatable clamping force is required. This clamp is installed by machinists, tool-and-die technicians, and production line fixture builders.

The DE-STA-CO 650 is used in industrial workholding applications including welding fixtures, machining jigs, and assembly line tooling. It is suited for environments where a high clamping load and straight-line plunger action are needed in a compact footprint. The flanged base with four mounting holes allows rigid attachment to fixture plates or work tables. The straight handle and red handle color make it easy to identify and operate in fast-paced production environments.

Key Features

• 16,000 lb (71,171.5 N) rated load capacity for heavy workholding applications
• 3 inches (76.2 mm) plunger travel with round plunger profile and internal 5/8-11 thread
• Flanged base with 4 mounting holes for rigid, bolt-down fixture mounting
• Carbon steel construction for durability in industrial environments
• Straight handle with red color for quick visual identification and easy actuation
• Plunger centerline height of 2.25 inches (57.15 mm) for predictable fixture geometry

Compatibility

Designed as an OEM-style straight line action clamp for industrial workholding, jig, and fixture applications requiring flanged-base mounting and high clamping loads.

Installation Notes

Installation is performed by fixture builders or mechanical technicians using standard fasteners through the four flanged base mounting holes. Ensure the mounting surface is flat and rigid to maintain rated clamping performance. Verify that the plunger thread engagement with any workpiece contact pad meets standard mechanical fastening guidelines. Disconnect or de-energize any associated pneumatic or powered tooling before servicing or repositioning the clamp.
