De-sta-co 630-MR Straight Line Action Clamp 2495 Lb

Product Description

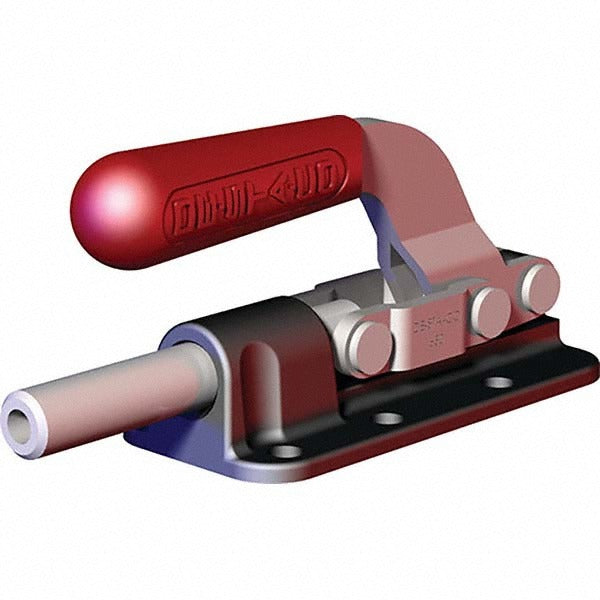

The DE-STA-CO 630-MR is a standard straight line action clamp designed for high-force workholding applications in industrial and manufacturing environments. It delivers a rated load capacity of 2495.38 pounds (11,100 N) with 2 inches of plunger travel, making it well suited for fixturing, jig building, and production tooling setups. The clamp features a flanged base with six mounting holes and a round, internally threaded plunger (M10 thread) measuring 0.62 inches in diameter. A red thumb handle provides positive operator control. The body is constructed from carbon steel throughout and includes the Toggle Lock Plus feature for added security during clamping cycles.

This clamp is used in industrial production fixtures, welding jigs, machining setups, and assembly tooling where consistent straight-line clamping force is required. Its flanged base configuration allows rigid surface mounting to fixture plates, steel weldments, or machine beds. The thumb handle style suits applications where operators cycle the clamp frequently by hand. With an overall length of 7.06 inches and an overall height of 3.05 inches, it fits standard fixture envelopes without significant clearance concerns.

Key Features

• 2495.38 lb (11,100 N) rated load capacity for heavy-duty workholding
• 2 inches of plunger travel with a 0.62-inch diameter round plunger and M10 internal thread
• Flanged base with six mounting holes for rigid, stable fixture mounting
• Carbon steel construction for durability in production tooling environments
• Toggle Lock Plus mechanism provides secondary lock to prevent unintended release
• Red thumb handle for fast, ergonomic hand cycling

Compatibility

Designed as an OEM-style straight line action clamp for industrial fixturing, jig plates, and production tooling applications requiring a flanged-base, high-capacity clamp with M10 internal plunger thread.

Installation Notes

Installation is typically performed by tooling engineers or fixture builders. Mount the flanged base to a rigid, flat surface using all six mounting holes to ensure even load distribution and prevent base flex under clamping force. Verify that the mounting surface material and fastener grade are rated for the full 2495 lb clamp load before putting the fixture into service. Inspect the Toggle Lock Plus mechanism and plunger thread engagement before initial use to confirm proper function.
