De-sta-co 606 Straight Line Action Clamp 450 Lb

Product Description

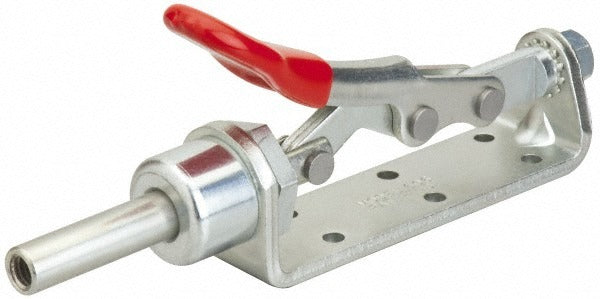

The DE-STA-CO 606 is a standard straight line action clamp rated for 450 lb (2001.7 N) of clamping load. It uses a round plunger with internal threading at 5/16-18 and delivers 1.57 inches of plunger travel to secure workpieces in a direct, linear motion. The flanged base mounts to fixtures, jigs, and tooling plates through six mounting holes. The body is carbon steel with a red thumb handle for manual actuation. At 0.81 pounds, it suits light-to-medium clamping tasks where compact, straight-pull holding force is required. This clamp is installed by toolmakers, fixture builders, and production technicians working in manufacturing, assembly, and welding environments.

The DE-STA-CO 606 is suited for use in production fixtures, welding jigs, and assembly tooling where repeatable straight-line clamping is needed. The flanged base provides a stable six-hole mounting footprint of 1.75 inches by 1.13 inches, allowing secure attachment to standard fixture plates. The overall length of 6.72 inches and overall height of 2.42 inches keep the clamp within a compact envelope for tight fixture layouts. It is intended for repetitive manual clamping cycles in light industrial and precision assembly applications.

Key Features

• 450 lb (2001.7 N) rated clamping load for reliable workpiece holding
• 1.57 inches of plunger travel with a 5/16-18 internal threaded round plunger
• Flanged base with six mounting holes for stable fixture attachment
• Carbon steel construction for durability in production environments
• Red thumb handle for manual actuation without additional tooling
• Compact overall dimensions: 6.72 inches long by 2.42 inches tall

Compatibility

Designed as an OEM-style straight line action clamp replacement or new installation for standard industrial fixture and jig applications requiring a flanged-base, carbon steel clamp with 5/16-18 internal plunger threading.

Installation Notes

Installation is performed by toolmakers or fixture technicians using standard hand tools. Secure the flanged base through all six mounting holes to ensure even load distribution across the fixture plate and prevent clamp shift under repeated clamping cycles. Verify that the mating surface is flat and free of debris before mounting. Confirm that the plunger tip accessory or contact pad, if used, is compatible with the 5/16-18 internal thread before applying load.
