De-sta-co 6015 Straight Line Action Clamp 560 Lb

Product Description

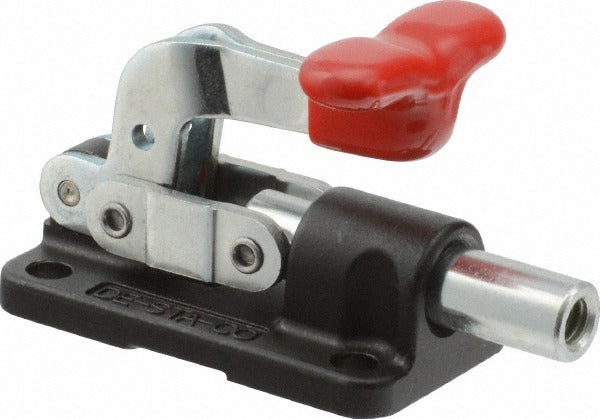

The DE-STA-CO 6015 is a standard straight line action clamp rated for 560 lb (2500 N) of load capacity, designed to deliver consistent clamping force in a direct linear motion. Built from carbon steel with a flanged base, this clamp is suited for fixturing, welding, assembly, and machining applications where repeatable workpiece holding is required. The T-handle provides positive grip and mechanical advantage up to 35:1 in both pulling and pushing directions. The plunger travels 0.7 inches and measures 0.39 inches in diameter with 1/4-20 internal thread for tip accessories. Metalworking and industrial maintenance professionals are the primary installers of this clamp in production and tooling environments.

The 6015 is used in light-to-medium duty fixturing where a compact, low-profile straight line clamp is needed. Its flanged base with four mounting holes allows secure, bolt-down installation to fixture plates, welding tables, and jigs. The 2.25 inch base length and 1.26 inch base width fit standard fixture grid patterns. The clamp is appropriate for both manual assembly lines and bench-top fixture builds in fabrication shops and production facilities.

Key Features

• 560 lb (2500 N) rated load capacity for reliable workpiece holding
• 0.7 inch plunger travel with round plunger and 1/4-20 internal thread for tip compatibility
• 35:1 maximum mechanical advantage in both pulling and pushing directions
• Flanged base with 4 mounting holes for rigid bolt-down installation
• Carbon steel construction for durability in industrial environments
• Red T-handle for positive grip and quick operator identification

Compatibility

Designed as an OEM-style straight line action clamp suitable for standard fixture plates and jig assemblies requiring a flanged-base, four-hole mounting pattern with a 1.75 inch length hole spacing and 0.87 inch width hole spacing.

Installation Notes
