De-sta-co 5310-R Hold-down Toggle Clamp 1299.4 Lb

Product Description

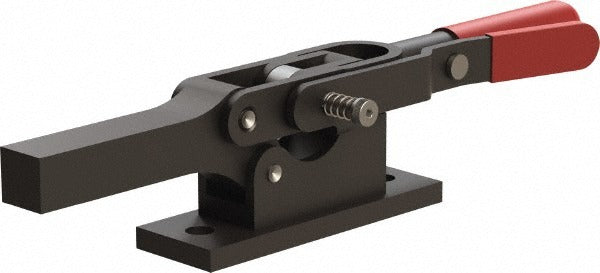

The DE-STA-CO 5310-R is a manual hold-down toggle clamp designed for horizontal clamping applications requiring high holding force. Built from forged alloy steel throughout, this clamp delivers 1,299.4 pounds of holding capacity and features a solid bar with a closed end. The flanged base provides stable, two-point mounting with a 0.41-inch hole diameter. A 69-degree handle movement actuates the mechanism, swinging the bar through a 90-degree arc to secure workpieces firmly against a fixture or table surface. The Toggle Lock Plus feature is included to prevent accidental release during operation. This clamp suits production environments where repeatable, reliable workholding is required on every cycle.

The 5310-R is used in manufacturing, fabrication, and assembly fixturing where a horizontal-action clamp with substantial holding force is needed. The flanged base allows direct mounting to fixture plates, jigs, or machine tables. With an overall length of 11.02 inches and an overall height of 2 inches, this clamp fits standard fixture layouts without significant clearance concerns. The 1.31-inch height under the bar accommodates a range of workpiece thicknesses. This clamp is typically installed by tooling engineers, fixture builders, and machinists in industrial production settings.

Key Features

• 1,299.4 lb holding capacity for demanding workholding applications
• Forged alloy steel construction on both body and handle for strength and durability
• Flanged base with two mounting holes spaced 3.63 inches apart for secure fixture attachment
• 90-degree bar opening with 69-degree handle movement for efficient actuation
• Toggle Lock Plus included to prevent unintended release
• Oxide finish coating for corrosion resistance in shop environments

Compatibility

Designed as an OEM-style hold-down toggle clamp for horizontal fixturing applications in industrial jigs, fixtures, and assembly tooling.

Installation Notes

Installation is typically performed by tooling or fixture technicians using standard drill and tap tooling to prepare the mounting surface. Secure the flanged base through both mounting holes to prevent rocking or shift under load. Verify that the fixture plate or table can sustain the full 1,299.4 lb clamping load before placing the assembly into production. Always release clamping force before repositioning or removing workpieces to avoid injury.
