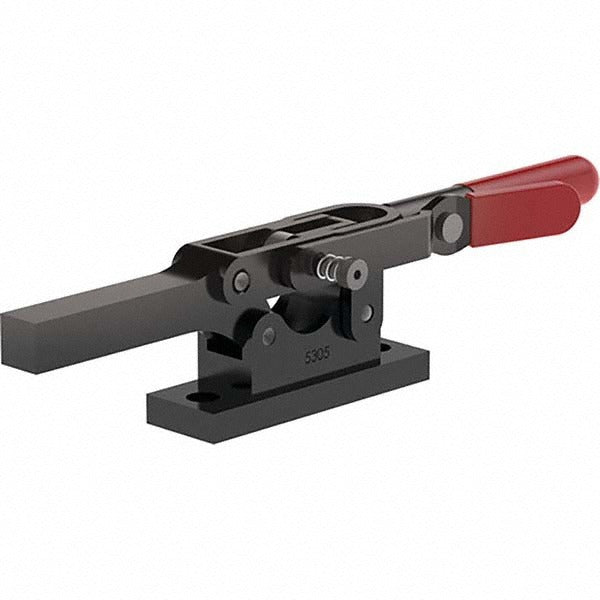

De-sta-co 5305-R Hold-down Toggle Clamp 600.24 Lb

Product Description

The DE-STA-CO 5305-R is a manual hold-down toggle clamp configured for horizontal operation with a solid bar and flanged base. It delivers a holding capacity of 600.24 pounds (2670 N) and is constructed from forged alloy steel throughout, including the handle. The straight, red-handled design moves through 69 degrees of handle travel with a 90-degree bar opening, giving technicians reliable, repeatable clamping action. An oxide finish coating provides baseline corrosion resistance. This clamp is installed by machinists, fixture builders, welding fabricators, and assembly technicians who need positive mechanical hold-down force on workpieces or jigs.

The 5305-R is suited for use in production fixtures, welding positioners, machining jigs, and assembly stations where a horizontal clamp orientation is required. The flanged base with four mounting holes on a 2.5-inch hole spacing simplifies bolting to fixture plates, steel tables, or welding tables. The closed bar end and solid bar style make this clamp appropriate for direct hold-down contact on flat or near-flat workpiece surfaces in both light manufacturing and heavy fabrication environments.

Key Features

• 600.24 lb holding capacity with solid, closed-end bar for direct workpiece contact
• Forged alloy steel construction on body and handle for durability under repeated cycling
• Horizontal bar orientation with 90-degree bar opening for clear workpiece access
• 69-degree handle movement provides positive over-center lock with Toggle Lock Plus mechanism
• Flanged base with four mounting holes simplifies installation on fixture plates and weld tables
• Oxide finish coating for basic corrosion and wear resistance

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in industrial fixtures, jigs, and assembly tooling requiring horizontal clamping with a flanged mounting base.

Installation Notes

Installation is typically performed by machinists or fixture builders using standard fasteners through the four mounting holes. Power down or de-energize any associated automated equipment before mounting or adjusting the clamp. Verify that mounting surface flatness and fastener torque are sufficient to prevent clamp movement under rated load. Do not exceed the stated holding capacity, and confirm the bar height clears the workpiece thickness before cycling.
