De-sta-co 331-R Pull-action Latch Clamp 720 Lb

Product Description

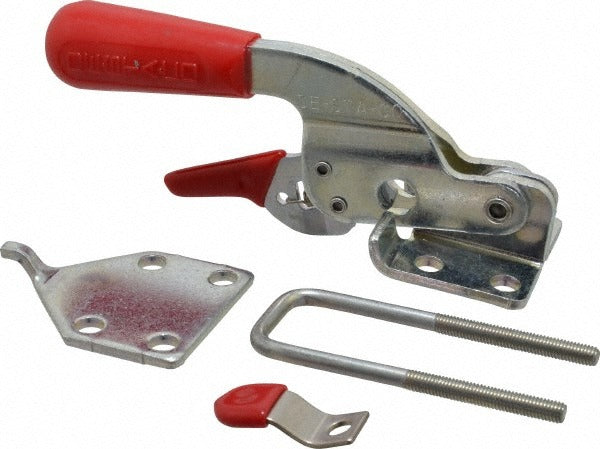

The DE-STA-CO 331-R is a horizontal pull-action latch clamp rated at 720 lb (3,202.72 N) of load capacity. It features a U-hook bar style and a flanged base, making it suitable for securing workpieces or panels in fixture, jig, and production line applications. The clamp draws 1.75 inches of movement to engage the latch, and the overall length is 6.07 inches. The carbon steel body provides solid durability in industrial environments. This unit ships with a latch plate, patented thumb control lever, threaded U-hook, and Toggle Lock Plus mechanism included. Installation is handled by maintenance technicians and fixture builders working in manufacturing or fabrication settings.

The 331-R is designed for horizontal clamping applications where a pull-action engagement is required. It suits production fixtures, jigs, tooling plates, and enclosure latching where repeatable, secure hold-down force is needed. The flanged base allows direct surface mounting with standard fasteners through the provided mounting hole pattern. The straight red handle offers clear visual identification of clamp position on the line.

Key Features

• 720 lb (3,202.72 N) load capacity for secure horizontal pull-action clamping
• Includes latch plate, patented thumb control lever, threaded U-hook, and Toggle Lock Plus
• Flanged base with 0.27-inch diameter mounting holes for direct surface mounting
• 1.75-inch drawing movement for positive latch engagement
• Carbon steel body for industrial strength and durability
• Straight red handle for quick visual status identification

Compatibility

Designed as an OEM-style pull-action latch clamp for horizontal clamping applications in industrial fixture, jig, and tooling setups requiring a flanged base mount and U-hook bar style.

Installation Notes

Installation is typically performed by fixture builders or maintenance technicians using standard hand tools. De-energize or lock out any associated machinery before mounting or adjusting the clamp per applicable LOTO procedures. Secure the flanged base through all mounting holes to ensure even load distribution and prevent clamp movement under load. Verify that the latch plate alignment allows full draw travel before placing the assembly into service.
