De-sta-co 331-M-50 Pull-action Latch Clamp 719 Lb

Product Description

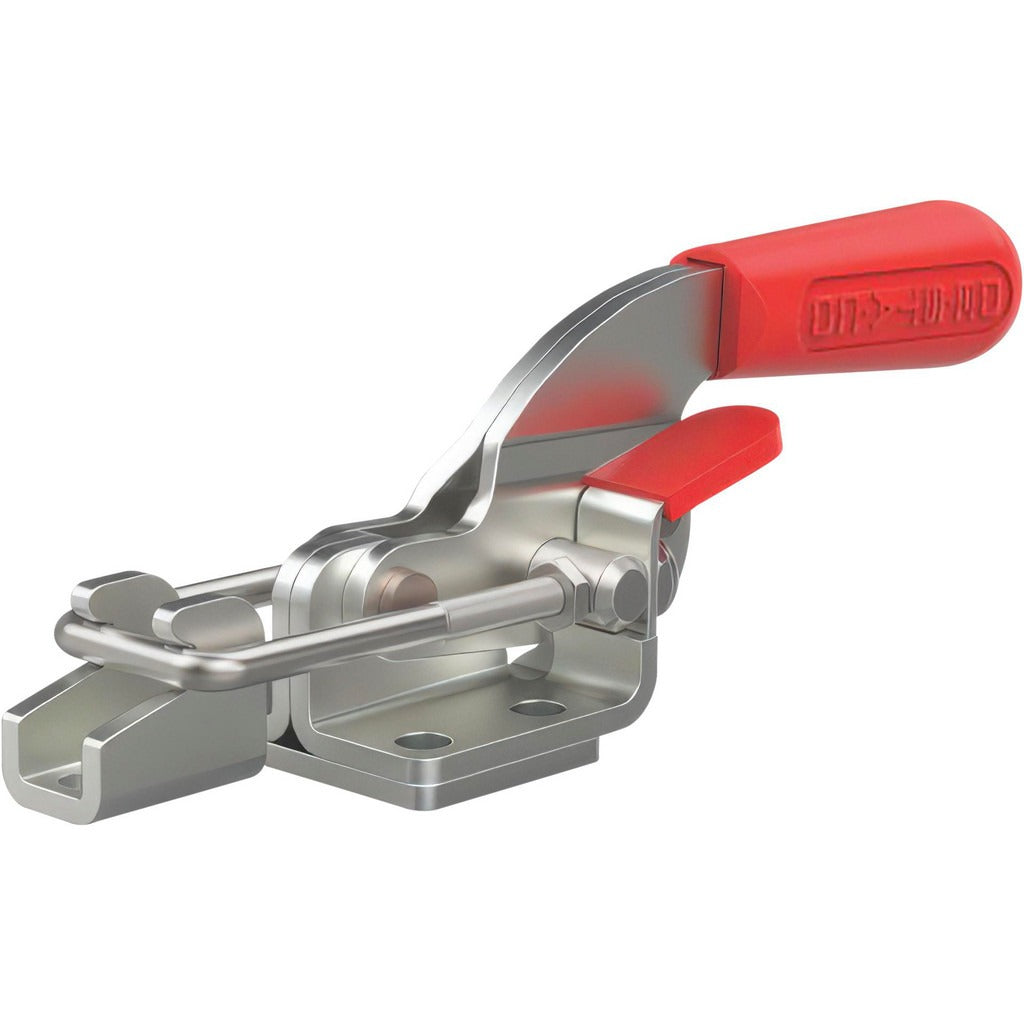

The DE-STA-CO 331-M-50 is a horizontal pull-action latch clamp rated for 719 lb (3200 N) of load capacity. Built from carbon steel with a straight red handle and flanged base, it is designed to secure workpieces or fixtures in industrial, manufacturing, and fabrication applications. The clamp draws the latch closed with 1.75 inches of drawing movement and spans 8.563 inches overall. It ships complete with a latch plate, threaded U-hook, patented thumb control lever, and Toggle Lock Plus mechanism, making it a ready-to-install clamping solution for production jigs, fixtures, and tooling setups.

This clamp is suited for horizontal clamping orientations on production lines, assembly fixtures, welding tables, and similar industrial workholding applications. The flanged base allows direct surface mounting, and the U-hook bar style accommodates a wide range of keeper configurations. Installation is typically performed by machine builders, fixture fabricators, and maintenance technicians working in light-to-medium industrial environments.

Key Features

• 719 lb (3200 N) rated load capacity for reliable workholding under production loads
• Horizontal clamping orientation with 1.75 inches of drawing movement
• Flanged base for direct surface mounting with four-hole bolt pattern
• Threaded U-hook bar allows hook position adjustment to suit keeper height
• Toggle Lock Plus mechanism provides secondary lock-out to prevent accidental release
• Includes latch plate and patented thumb control lever - no separate hardware required

Compatibility

Designed as an OEM-style pull-action latch clamp for horizontal workholding fixtures; confirm mounting hole pattern and load requirements against your specific fixture design before installation.

Installation Notes

Install using the four flanged base mounting holes; mounting hole diameter is 0.27 inches with width spacing of 1.25 inches and length spacing of 0.75 inches between centers. De-energize or lock out any powered equipment before mounting or adjusting the clamp in a production environment. Adjust the threaded U-hook to achieve proper draw tension before final tightening. Verify that the Toggle Lock Plus lever is fully engaged after installation to confirm the clamp locks securely under operating conditions.
