De-sta-co 330 Pull-action Latch Clamp 200 Lb Horizontal

Product Description

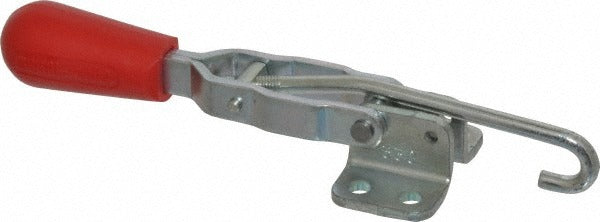

The DE-STA-CO 330 is a horizontal pull-action latch clamp rated for 200 pounds (889.64 N) of load capacity. It is built from carbon steel and features a J-Hook bar with a straight red handle and a flanged base for secure surface mounting. With an overall length of 6.01 inches and a drawing movement of 2.35 inches, this clamp is designed for workholding, fixture, and jig applications where a positive pull-action locking mechanism is required. A patented thumb control lever and threaded J-Hook are included. Licensed trades and industrial maintenance technicians install this type of clamp in production and assembly environments.

The DE-STA-CO 330 is suited for horizontal clamping tasks in light manufacturing, welding fixtures, machine tooling setups, and assembly jigs. The flanged base accommodates bolt-down mounting on flat surfaces. The threaded J-Hook allows adjustment of hook engagement depth to match the workpiece or strike. This clamp is appropriate for both permanent fixture installation and temporary workholding setups in industrial and trade shop environments.

Key Features

• 200 lb (889.64 N) pull-action load capacity for reliable workholding
• Horizontal clamping orientation with J-Hook bar style
• Flanged base for stable, bolt-down surface mounting
• Includes patented thumb control lever and threaded J-Hook for adjustable engagement
• Carbon steel body for durability in industrial environments
• Straight red handle for positive grip and visual identification

Compatibility

Designed as an OEM-style pull-action latch clamp for horizontal workholding fixtures, jigs, and assembly tooling applications requiring a flanged base mount and J-Hook bar.

Installation Notes

Installation is performed by maintenance technicians or fixture builders using standard hand tools. Mount the flanged base to a flat, rigid surface using fasteners through the 0.22-inch diameter mounting holes. Ensure the mounting surface and fasteners are rated for the full 200 lb clamp load before putting the fixture into service. Adjust the threaded J-Hook to the correct engagement depth before final tightening and verify the thumb control lever operates freely through its full range of motion.
