De-sta-co 324-R Pull-action Latch Clamp 495 Lb

Product Description

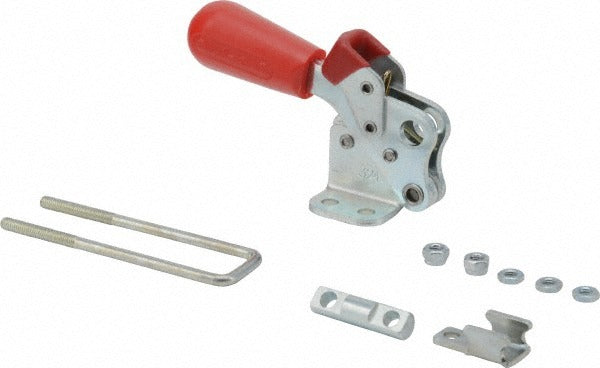

The DE-STA-CO 324-R is a vertical pull-action latch clamp rated at 495 lb (2200 N) of load capacity. It features a J-Hook bar style and a flanged base, making it well suited for fixturing, welding positioners, jigs, and industrial workholding applications where a secure, repeatable latch point is required. The carbon steel body delivers reliable strength in demanding shop environments. With a drawing movement of 1.53 inches and an overall length of 3.47 inches, the 324-R is a compact unit that fits tight fixture layouts without sacrificing holding force. A straight red handle and included Toggle Lock Plus mechanism provide positive lock confirmation during operation. Licensed trades and fixture builders typically install this clamp as part of production tooling or assembly fixtures.

The 324-R is designed for vertical clamping orientations in light industrial and manufacturing settings. It is commonly found on welding fixtures, assembly jigs, inspection stations, and material-handling workholding setups. The flanged base simplifies mounting to flat fixture plates using standard fasteners through the 0.20-inch diameter mounting holes. The included latch plate, patented thumb control lever, and threaded U-hook come in the box, so no additional hardware is needed for a basic installation. This clamp fits applications where controlled draw-down force and quick-release capability are both required.

Key Features

• 495 lb (2200 N) rated load capacity for reliable workholding force
• Vertical clamping orientation with J-Hook bar style
• Flanged base with 0.20-inch mounting hole diameter for flat-plate installation
• 1.53-inch drawing movement for consistent pull-down stroke
• Toggle Lock Plus mechanism provides positive latch engagement and prevents accidental release
• Includes latch plate, patented thumb control lever, and threaded U-hook
• Carbon steel body construction for industrial durability

Compatibility

Designed as an OEM-style pull-action latch clamp for vertical fixturing applications requiring a flanged-base J-Hook configuration with a 495 lb load rating.

Installation Notes

Installation is typically performed by tooling builders, fixture technicians, or maintenance trades using standard hand tools. Mount the flanged base to a flat fixture plate and secure through the provided mounting hole pattern before applying any clamping load. Ensure the latch plate is aligned properly with the J-Hook bar before tightening fasteners. Confirm the Toggle Lock Plus lever engages fully after each latch cycle to prevent inadvertent release during operation.
