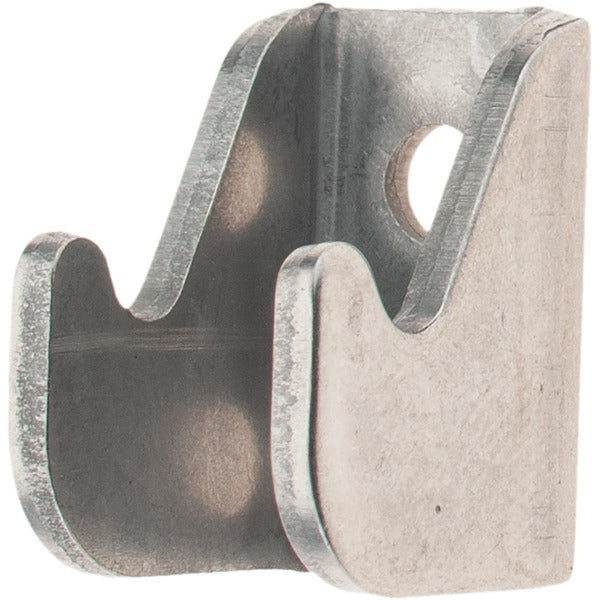

De-sta-co 323104-MSS Latch Plate Hook Assembly 360 Lb

Product Description

The DE-STA-CO 323104-MSS is a stainless steel latch plate hook assembly designed for use with pull action latch clamps. It provides the mating hook surface that locks a latch clamp in the closed, secured position. With a rated load capacity of 360 pounds and a base footprint of 0.79 inches in length by 0.52 inches in width, this compact component handles substantial clamping force in a small envelope. The 0.17-inch mounting hole accepts standard fastener hardware for fixed installation on fixtures, jigs, or workholding setups. Stainless steel construction resists corrosion in washdown and high-humidity environments.

This latch plate hook assembly is intended for use with De-Sta-Co 323-SS and 323-RSS pull action latch clamps. Typical applications include industrial fixturing, tooling, enclosure latching, and manufacturing jigs where repeatable, secure clamping is required. The stainless steel material makes it suitable for food processing, clean room, and other environments where corrosion resistance is a priority. It is installed as a stationary anchor point paired with the corresponding pull action clamp body.

Key Features

• 360-pound load capacity provides reliable holding force for demanding fixturing applications
• Stainless steel construction offers corrosion resistance in washdown and high-humidity environments
• Compact base footprint of 0.79 inches by 0.52 inches fits tight installation spaces
• 0.17-inch mounting hole accepts standard fastener hardware for secure attachment
• Mount hole center spacing of 0.39 inches ensures precise alignment with matching clamp hardware

Compatibility

Designed for use with De-Sta-Co 323-SS and 323-RSS pull action latch clamps.

Installation Notes

Installation is typically performed by maintenance technicians, tooling engineers, or fixture builders. Power down any associated automated equipment before servicing clamping components. Fasten the plate securely using appropriately sized hardware through the 0.17-inch mounting hole, ensuring the surface is flat and rigid to maintain rated load capacity. Verify alignment with the mating clamp body before final tightening to ensure proper latch engagement.
