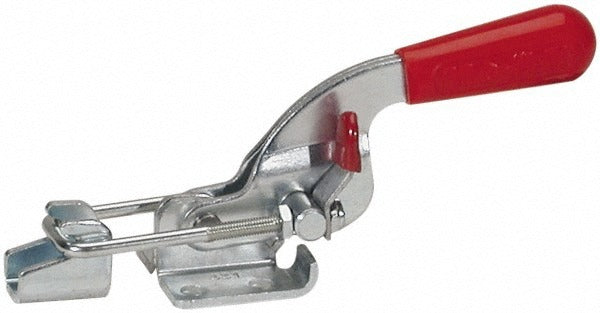

De-sta-co 323-SS Pull-action Latch Clamp 360 Lb Stainless Steel

Product Description

The DE-STA-CO 323-SS is a horizontal pull-action latch clamp rated at 360 pounds (1601.36 N) of load capacity, constructed entirely from stainless steel for corrosion resistance in demanding environments. It features a straight handle with a red grip, a flanged base for secure surface mounting, and a threaded U-hook bar for adjustable clamping depth. With an overall length of 3.88 inches and a drawing movement of 1.18 inches, this clamp is designed for fixture, jig, and workholding applications where a compact, pull-to-latch mechanism is required. Licensed HVAC, plumbing, electrical, and industrial maintenance technicians commonly specify DE-STA-CO clamps for panel, duct, and access-door securing tasks.

The 323-SS is suited for horizontal clamping applications in light industrial, manufacturing, and mechanical service environments. Its flanged base mounts to flat surfaces using two mounting holes spaced 0.63 inches apart (length direction) and 0.75 inches apart (width direction), accepting 0.17-inch diameter mounting hardware. The stainless steel construction makes it appropriate for wash-down, food service, or corrosive-atmosphere installations where carbon steel clamps would be unsuitable. It ships with a latch plate, a patented thumb control lever, and a threaded U-hook for out-of-box installation.

Key Features

• 360 lb (1601.36 N) rated load capacity for secure pull-to-latch holding force
• Full stainless steel body and bar construction for corrosion resistance
• Flanged base with dual mounting holes for rigid surface attachment
• Threaded U-hook allows clamping depth adjustment without additional hardware
• Patented thumb control lever included for positive latch engagement and release
• Compact 3.88-inch overall length fits tight panel and fixture installations

Compatibility

Designed as an OEM-style replacement or direct-install pull-action latch clamp for horizontal clamping fixtures, jigs, access panels, and enclosures requiring a flanged-base U-hook clamp in the 360 lb load class.

Installation Notes

Installation is performed by mechanical or maintenance technicians using standard hand tools. Mount the flanged base to a clean, flat surface using fasteners sized for the 0.17-inch mounting holes, and verify the latch plate is aligned before applying load. Adjust the threaded U-hook to achieve the desired clamping depth before tightening the lock nut. Always confirm load ratings are not exceeded in service, and de-tension the clamp before servicing adjacent components.
