De-sta-co 323 Pull-action Latch Clamp 360 Lb U-hook

Product Description

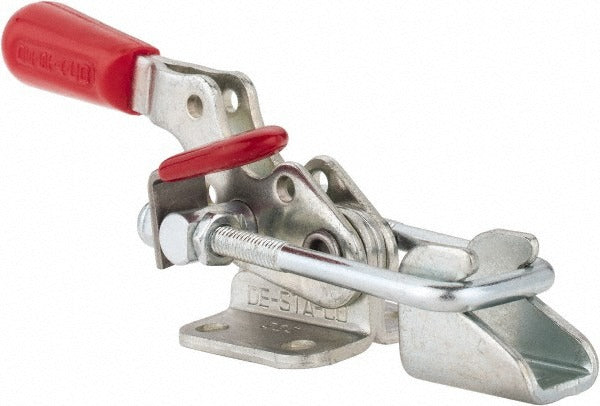

The DE-STA-CO 323 is a horizontal pull-action latch clamp rated at 360 pounds (1601.36 N) of load capacity. It uses a U-hook bar and a straight, red-handled design to secure workpieces or panels with a single pull motion. The flanged base mounts to fixtures, jigs, and tooling stations. The clamp includes a patented thumb control lever for quick release, a latch plate, and a threaded U-hook. Overall length is 3.88 inches, with a drawing movement of 1.18 inches. Built from carbon steel throughout, this clamp suits high-repetition clamping applications where consistent holding force and rapid operation are required.

The DE-STA-CO 323 is used in industrial tooling, welding fixtures, assembly jigs, and production workholding stations. Its horizontal orientation and flanged base make it a common choice for flat-surface mounting on steel and aluminum fixture plates. The compact footprint, with a base length of 1.02 inches and base width of 1.10 inches, suits tight fixture layouts. Machinists, tool-and-die technicians, and fixture builders are the primary installers. It also sees use in equipment enclosure latching and material handling applications where a positive-lock pull-action mechanism is needed.

Key Features

• 360 lb (1601.36 N) rated load capacity for reliable workholding
• Horizontal pull-action operation with 1.18 inches of drawing movement
• Patented thumb control lever included for fast, controlled release
• Threaded U-hook and latch plate included - ready to install
• Flanged base with 0.17-inch diameter mounting holes and 0.75-inch hole spacing (width)
• Carbon steel construction throughout for strength in industrial environments

Compatibility

Designed as an OEM-style pull-action latch clamp for industrial fixture, jig, and tooling applications requiring horizontal clamping with a flanged base mount.

Installation Notes

Installation is typically performed by tooling technicians or fixture builders using standard hand tools. Shut down and de-energize any powered equipment before mounting or adjusting the clamp. Fasten through the flanged base mounting holes using fasteners appropriate for the fixture material and load requirements. Verify that the threaded U-hook adjustment provides the correct clamping tension before returning the fixture to production use.
