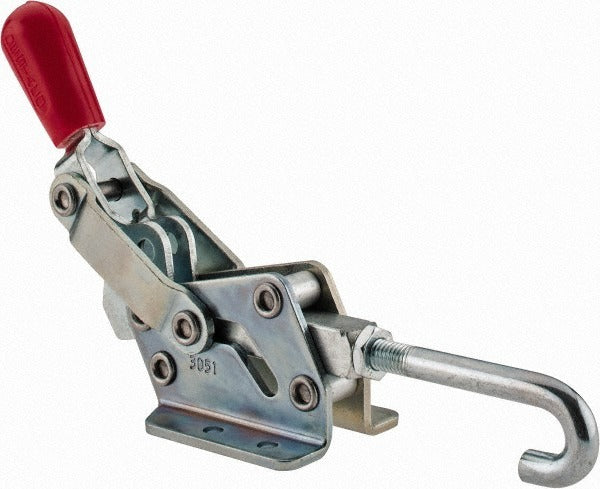

De-sta-co 3051 Pull-action Latch Clamp 1507 Lb J-hook

Product Description

The DE-STA-CO 3051 is a horizontal pull-action latch clamp rated at 1,507 pounds (6,700 N) of load capacity, built from carbon steel for durable service in industrial fixturing and workholding applications. It features a J-Hook bar style with a straight red handle and a flanged base for secure, repeatable mounting. The drawing movement is 0.75 inches, and the overall length is 8.98 inches. This clamp is installed by machinists, toolmakers, fixture builders, and production assembly technicians who require consistent hold-down force in horizontal clamping configurations.

The 3051 is suited for use on jigs, fixtures, welding positioners, and assembly stations where a horizontal pull-action clamp with high load capacity is required. The flanged base allows direct mounting to flat surfaces using standard fasteners through the 0.22-inch diameter mounting holes. The J-Hook assembly is included, making this a ready-to-install unit for new fixture builds or replacement of worn clamps in existing setups.

Key Features

• 1,507 lb (6,700 N) load capacity for high-force horizontal clamping applications
• J-Hook bar style with J-Hook assembly included
• Flanged base with 0.22-inch mounting holes for rigid surface attachment
• 0.75-inch drawing movement for controlled pull-action engagement
• Straight red handle for clear visual identification and positive grip
• Carbon steel body and base construction for strength and wear resistance

Compatibility

Designed as an OEM-style replacement or new-build component for horizontal pull-action latch clamp applications in industrial jigs, fixtures, and workholding assemblies requiring a flanged-base J-Hook configuration.

Installation Notes

Installation is performed by toolmakers or fixture technicians using standard drill and fastener tooling sized for the 0.22-inch mounting holes. Ensure the mounting surface is flat and rigid to maintain rated load capacity and consistent clamping force. Verify that the J-Hook assembly is fully seated and the handle latches completely before applying load. De-energize or lock out any associated machinery before servicing or replacing the clamp per applicable safety procedures.
