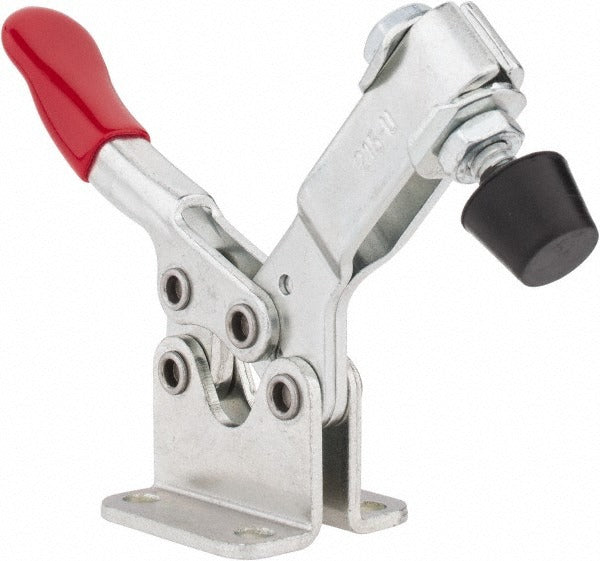

De-sta-co 215-U Toggle Clamp 200 Lb U-bar Flanged

Product Description

The DE-STA-CO 215-U is a manual hold-down toggle clamp designed for horizontal clamping applications in jigs, fixtures, and workholding setups. It delivers a 200 lb (890 N) holding capacity through a straight, red-handled lever mechanism with a 78-degree handle movement and an 87-degree bar opening. The U-bar spindle assembly rides on an M6x1.0 threaded fixed spindle with 1.26 inches of spindle travel, giving operators repeatable, positive clamping force. The flanged base mounts through four holes and is constructed from zinc-finished carbon steel for corrosion resistance in light industrial environments. Machinists, toolmakers, and fixture builders are the primary installers of this clamp.

The 215-U fits horizontal clamping applications where a workpiece must be held securely against a fixture plate, welding table, or assembly jig. The U-bar style allows a fastener or stud to pass through the bar, making it suitable for through-bolt workholding scenarios. Its compact overall length of 5.46 inches and overall height of 1.53 inches suit tight fixture layouts. The flanged base provides four-point mounting stability, and the included spindle, two nuts, and two washers allow for height adjustment at installation.

Key Features

• 200 lb (890 N) holding capacity for reliable workpiece retention
• U-bar with fixed M6x1.0 spindle and 1.26-inch spindle travel for height adjustment
• 87-degree bar opening allows quick loading and unloading of workpieces
• Flanged base with four mounting holes for rigid, stable fixture attachment
• Zinc-finished carbon steel construction for durability in industrial use
• Includes spindle, two nuts, and two washers for complete out-of-box installation

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in manual fixturing, welding positioners, and assembly jigs requiring horizontal clamping with a U-bar configuration.

Installation Notes

Licensed machinists or toolmakers typically mount this clamp to fixture plates using four fasteners through the flanged base mounting holes, which are spaced 1.06 inches lengthwise and 0.87 inches widthwise. Ensure the work surface is de-energized or the fixture is clear of moving machinery before installing or adjusting the clamp. Use the included spindle hardware to set bar height before final tightening. Do not exceed the rated 200 lb holding capacity in dynamic or impact-loading applications.
