De-sta-co 213208 Cap Tip Spindle Assembly 1/4-20

Product Description

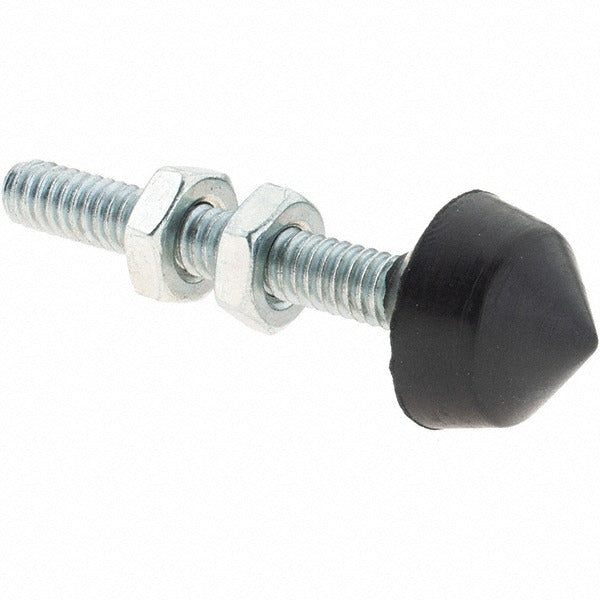

The DE-STA-CO 213208 is a cap tip clamp spindle assembly designed for use with toggle clamps in industrial workholding applications. The spindle is machined from carbon steel and features a cone-shaped neoprene cushion cap tip rated at 70-80A hardness, providing a firm but surface-protective contact point. Overall length is 2.25 inches with a 1/4-20 thread and a thread length of 1.56 inches. Jam nuts are included. This assembly is a direct-fit replacement component installed by maintenance technicians and fixture builders working with toggle clamp systems on production lines and assembly fixtures.

This spindle assembly is intended for use with the DE-STA-CO 213 Horizontal Hold Down Clamp series. It is suited for light-duty workholding setups in manufacturing, fabrication, and assembly environments where consistent, repeatable clamping force with part protection is required. The neoprene cone cap tip minimizes surface marring on finished or semi-finished workpieces. Installation is typically performed during fixture setup, maintenance teardown, or tip replacement cycles.

Key Features

• Carbon steel spindle construction for durability in production workholding environments
• Cone-shaped neoprene cushion cap tip rated 70-80A hardness protects workpiece surfaces
• 1/4-20 thread with 1.56-inch thread length for secure adjustment and locking
• Tip surface diameter of 0.63 inches; tip maximum diameter of 0.75 inches
• Includes jam nuts for spindle position locking
• Minimum operating temperature of -22 degrees F for use in cold-environment applications

Compatibility

Designed for use with the DE-STA-CO 213 Horizontal Hold Down Clamp series as a replacement or service spindle assembly.

Installation Notes

Installation is performed by maintenance technicians or fixture builders during toggle clamp servicing or initial fixture assembly. Ensure the clamp arm is fully released and any workholding pressure is relieved before removing or adjusting the spindle assembly. Use the included jam nuts to lock the spindle at the desired extension after positioning. Thread engagement should be verified to be fully within the clamp body before returning the fixture to service.
