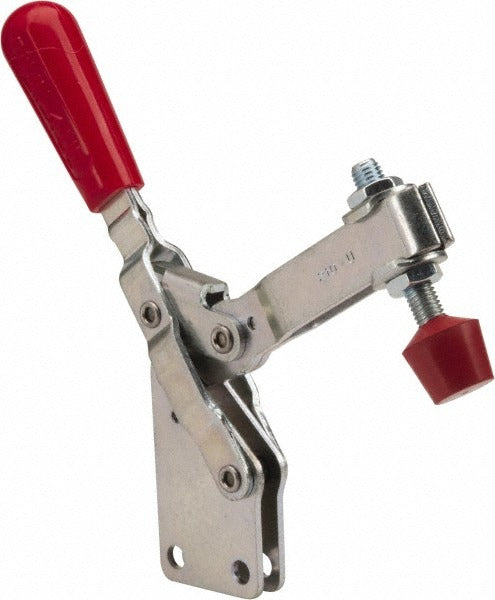

De-sta-co 210-UB Toggle Clamp Vertical 600 Lb U-bar

Product Description

The DE-STA-CO 210-UB is a manual hold-down toggle clamp with a vertical handle orientation and a U-bar design, rated at 600 lb (2670 N) holding capacity. Built from carbon steel with a zinc finish coating, it is engineered for securing workpieces on fixtures, jigs, welding tables, and machining setups. The straight base mounts in four points and accepts a 3/8-16 spindle assembly with 2.35 inches of spindle travel, giving operators precise clamping depth adjustment. Machinists, fabricators, and fixture builders use this clamp where repeatable, reliable hold-down force is required in production and job-shop environments.

The 210-UB is suited for horizontal surface mounting in light to medium industrial workholding applications. The 103-degree bar opening provides ample clearance for fast part loading and unloading, while the 58-degree handle movement arc keeps actuation compact in tight fixture layouts. The fixed spindle bar end type and included flanged washers and spindle assembly allow for straightforward setup without additional hardware. Applications include welding fixtures, machining jigs, assembly stations, and manual clamping operations where consistent clamping force and quick release are priorities.

Key Features

• 600 lb (2670 N) holding capacity for reliable workpiece retention
• 103-degree bar opening for fast, unobstructed part loading
• 58-degree handle movement arc suited for compact fixture layouts
• 3/8-16 fixed spindle with 2.35 inches of travel for depth adjustment
• Four-hole straight base with 0.33-inch diameter mounting holes
• Carbon steel construction with zinc finish; includes flanged washers and spindle assembly

Compatibility

Designed as an OEM-style manual toggle clamp for general industrial workholding fixtures, jigs, and assembly stations requiring vertical hold-down clamping with a U-bar configuration and straight base mounting.

Installation Notes

Installation is typically performed by machinists, toolmakers, or fixture builders using standard hand tools. Secure all four mounting bolts through the straight base before applying clamping loads. Verify that the mounting surface is flat and that the spindle travel is adjusted to achieve full over-center lock before production use. Always release the clamp handle before removing workpieces to avoid sudden release of stored force.
