De-sta-co 207-ULB Toggle Clamp 375.43 Lb U-bar

Product Description

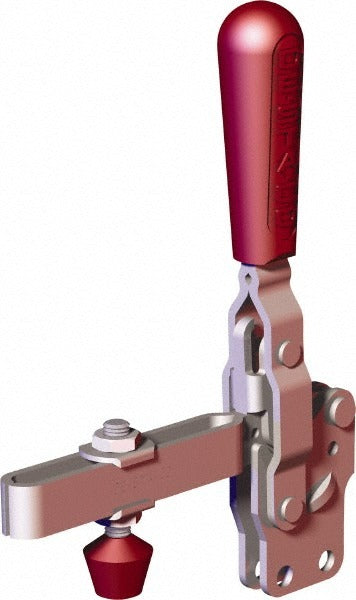

The DE-STA-CO 207-ULB is a manual hold-down toggle clamp with a vertical handle orientation and a U-bar pressing arm. It delivers a holding capacity of 375.43 pounds (1,670 N) and is built from carbon steel throughout, including the handle and bar assembly. The straight base mounts to fixtures, jigs, or workholding tables using four mounting holes. With a 57-degree handle movement arc and a 99-degree bar opening angle, the clamp opens wide for fast part loading and closes securely with minimal operator effort. A flanged washer and spindle assembly are included. This clamp is suited for production environments where repeated, reliable clamping force is required at a fixed station.

The 207-ULB is used in industrial and manufacturing settings for fixture work, welding jigs, assembly stations, and machining setups where workpieces must be held firmly in place during operations. The straight base mounts flush to a flat surface, making it compatible with standard tooling plates and fixture tables. The U-bar style arm accommodates parts that require clamping across a surface rather than at a single point. The red carbon steel handle provides a clear visual indicator and a positive grip during operation. This clamp is typically installed and maintained by tooling technicians, machinists, and fixture builders.

Key Features

• 375.43 lb (1,670 N) holding capacity for secure workpiece retention
• Vertical handle orientation with 57-degree handle movement arc
• 99-degree U-bar opening angle for easy part loading and unloading
• Carbon steel construction on bar, base, and handle for durability in industrial use
• Straight base with four mounting holes for rigid fixture mounting
• Includes flanged washers and spindle assembly - no additional hardware required for basic installation

Compatibility

Designed as a direct-mount hold-down toggle clamp for use on flat fixture plates, jig tables, and welding fixtures requiring a vertical-handle, U-bar style clamp with a straight base profile.

Installation Notes

Installation is typically performed by tooling technicians or fixture builders using standard hand tools. Mount the straight base to a flat, rigid surface using four fasteners through the provided mounting holes; ensure the mounting surface can support loads exceeding the rated 375.43 lb holding capacity. Verify spindle travel and bar clearance before securing final fixture position. De-energize or lock out any associated machinery before servicing or repositioning the clamp in an active production cell.
