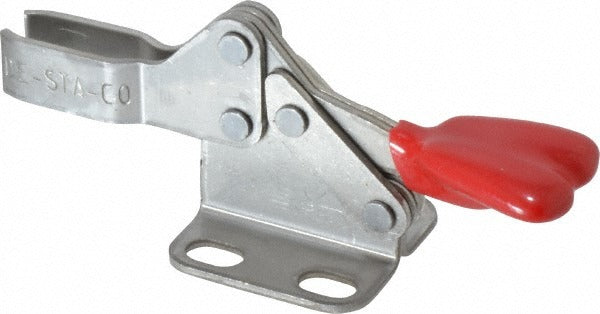

De-sta-co 206-SS Toggle Clamp 100 Lb Horizontal U-bar

Product Description

The DE-STA-CO 206-SS is a manual hold-down toggle clamp designed for horizontal clamping applications requiring a reliable, repeatable hold during machining, welding, or fixture operations. Built from stainless steel with a zinc finish coating, it delivers a holding capacity of 100 pounds (440 N) with a 90-degree bar opening and 90-degree handle movement. The flanged base mounts through four holes and measures 0.94 inches wide. Overall dimensions are 2.74 inches in length and 1.06 inches in height, making it well suited for compact fixture layouts. Licensed tradespeople and skilled assemblers working in tooling and fixturing environments are the primary installers.

This clamp is used in light-duty workholding fixtures across manufacturing, fabrication, and assembly environments. Its U-bar design with a fixed spindle end accommodates flat or low-profile workpieces. The compact overall footprint makes it practical for tight fixture plates and jig boards where larger clamps would interfere with adjacent components. The stainless steel construction makes it appropriate for environments where corrosion resistance is a priority, such as wet or washdown-adjacent workstations. The package includes one spindle, two nuts, and two washers.

Key Features

• 100 lb (440 N) holding capacity in a compact stainless steel body
• Horizontal handle orientation with 90-degree handle movement and 90-degree bar opening
• U-bar style with fixed spindle end - spindle travel of 0.35 inches, thread size 8-32
• Flanged base with four mounting holes - mount hole spacing 0.63 inches center-to-center in both length and width
• Height under bar of 0.44 inches supports low-profile workholding setups
• Stainless steel construction with zinc finish coating for corrosion resistance
• Includes spindle, two nuts, and two washers for immediate installation

Compatibility

Designed as an OEM-style replacement or direct-install toggle clamp for horizontal hold-down fixture applications requiring a flanged-base, U-bar clamp with 8-32 spindle thread and a 100 lb holding capacity.

Installation Notes

Installation is performed by machinists, fixture builders, or skilled assemblers using standard hand tools. Secure the flanged base through all four mounting holes to ensure even load distribution during clamping cycles. Verify spindle thread engagement and adjust the two included nuts to set the correct clamping height before final tightening. Never exceed the rated holding capacity, and inspect the toggle mechanism for wear or deformation at regular service intervals.
