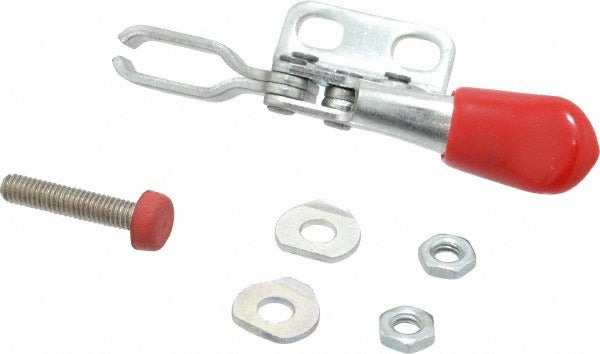

De-sta-co 205-UR Toggle Clamp 60 Lb U-bar Horizontal

Product Description

The DE-STA-CO 205-UR is a manual hold-down toggle clamp configured in a horizontal orientation with a U-bar arm and a right flanged base. It delivers a rated holding capacity of 60 pounds (265 N) and is built from carbon steel with a zinc finish coating for corrosion resistance. The straight red handle moves through 80 degrees of travel, while the bar opens to 90 degrees for quick part loading and unloading. A fixed spindle with M4x0.7 thread provides 0.37 inches of spindle travel for fine clamping adjustment. This clamp is installed by machinists, toolmakers, assembly technicians, and fixture builders on production jigs, welding fixtures, and workholding setups.

The 205-UR is suited for light-duty horizontal clamping applications in manufacturing, fabrication, and assembly environments. Its compact footprint, with an overall length of 2.71 inches and overall height of 0.67 inches, makes it appropriate for fixtures where space between clamp positions is limited. The right flanged base with two mounting holes spaced 0.62 inches center-to-center allows direct bolting to fixture plates or machine tables. Each unit ships with one spindle, two nuts, and two washers.

Key Features

• 60 lb (265 N) holding capacity for light-duty workholding
• Horizontal U-bar configuration with 90-degree bar opening for fast part access
• Right flanged base with two mounting holes for direct fixture plate mounting
• Fixed spindle with M4x0.7 thread and 0.37-inch travel for precise clamping depth
• Carbon steel construction with zinc finish coating
• Compact overall length of 2.71 inches and height of 0.67 inches

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in manual workholding fixtures, jigs, and assembly tooling requiring a horizontal U-bar configuration with a right flanged base.

Installation Notes

Installation is typically performed by toolmakers or fixture technicians using standard metric fasteners through the two provided mounting holes. Ensure the fixture plate or mounting surface is flat and clean before securing the base to prevent misalignment under clamping load. Verify spindle thread engagement and adjustment before placing the clamp in production use. Do not exceed the rated holding capacity of 60 lb to avoid clamp failure or workpiece movement.
