De-sta-co 205-SR Hold-down Toggle Clamp 60 Lb

Product Description

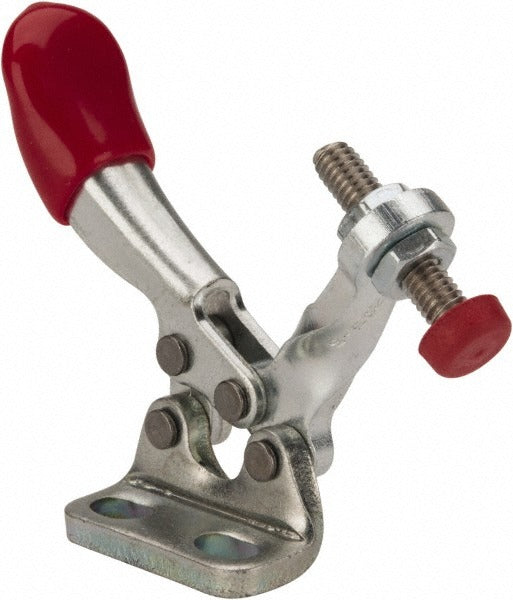

The DE-STA-CO 205-SR is a manual hold-down toggle clamp designed for horizontal clamping applications requiring a solid bar configuration and a right flanged base. It delivers a holding capacity of 60 pounds (265 N) and operates through 82 degrees of handle movement with a 94-degree bar opening. The clamp body and handle are constructed from carbon steel with a zinc finish coating for corrosion resistance. A red straight handle provides clear visual identification in production and fixture environments. The fixed spindle bar end includes one spindle and two nuts. Machinists, fixture builders, and production line technicians typically install this clamp on jigs, fixtures, and workholding setups.

The 205-SR is suited for light-duty horizontal hold-down applications in manufacturing, assembly, and machining environments. Its compact overall length of 2.85 inches and overall height of 0.67 inches make it appropriate for low-profile fixture plates and small workholding assemblies where clearance is limited. The right flanged base orients mounting holes to one side, allowing installation flush against fixture walls or step features. The M4x0.7 spindle thread allows for fine adjustment of clamping height.

Key Features

• 60 lb (265 N) holding capacity for light-duty workholding applications
• Solid bar with fixed spindle end includes one M4x0.7 spindle and two nuts
• 82-degree handle movement and 94-degree bar opening for quick release and engagement
• Right flanged base with two mounting holes spaced 0.62 inches apart center-to-center
• Carbon steel construction with zinc finish coating
• Compact profile: 2.85 inches overall length, 0.67 inches overall height

Compatibility

Designed as an OEM-style hold-down toggle clamp for use on jigs, fixtures, and workholding assemblies that require a horizontal, right-flanged base mount with a solid bar configuration.

Installation Notes

Installation is typically performed by machinists or fixture technicians using standard hand tools. The two mounting holes accept 0.16-inch diameter fasteners through the right flanged base. Ensure the fixture plate or mounting surface is de-energized and secured before installing or adjusting the clamp. Do not exceed the rated 60 lb holding capacity, as overloading can cause premature wear or mechanical failure of the toggle linkage.
