De-sta-co 205-S Toggle Clamp 60 Lb Horizontal Solid Bar

Product Description

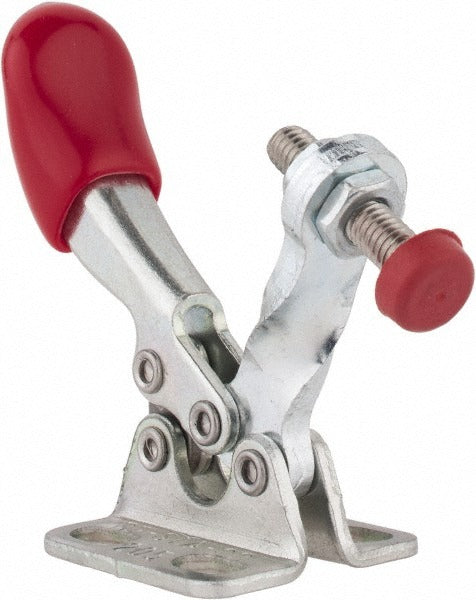

The DE-STA-CO 205-S is a manual hold-down toggle clamp designed for horizontal clamping applications requiring a secure, repeatable hold. Built from carbon steel with a zinc finish coating, this clamp delivers a 60 lb (265 N) holding capacity through a solid bar with a fixed spindle end. The flanged base provides four-point mounting with 0.16 inch diameter holes spaced 0.62 inches apart in both directions, making installation straightforward on jigs, fixtures, and workholding surfaces. A red straight handle with 82 degrees of handle movement and a 94-degree bar opening gives the operator quick, positive actuation and clear visual confirmation of clamp state.

The 205-S suits light-duty production fixtures, assembly jigs, and inspection stations where consistent part holding is required without power tooling. Its compact overall length of 2.85 inches and overall height of 0.67 inches fit tight fixture layouts. The included M4x0.7 spindle and two nuts allow minor height adjustment at the clamping point. This clamp is commonly installed by toolmakers, fixture builders, and machine shop technicians working with small-part holding applications.

Key Features

• 60 lb (265 N) holding capacity for light-duty workholding and fixture use
• Horizontal handle orientation with 82-degree handle movement for quick actuation
• 94-degree bar opening provides clear access to the workpiece during loading and unloading
• Solid bar with fixed spindle end and M4x0.7 spindle thread for adjustable clamping height
• Flanged base with four mounting holes for stable, secure fixture attachment
• Carbon steel construction with zinc finish coating for durability and corrosion resistance

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in manual fixture, jig, and workholding applications requiring horizontal clamping with a flanged base mount.

Installation Notes

Mount using four fasteners through the flanged base holes; verify the base is seated flat against the fixture surface before tightening to prevent rocking. Confirm the bar opening and handle travel are unobstructed before placing the clamp into service. Adjust the M4x0.7 spindle to achieve proper clamping force and bar contact on the workpiece. Disengage the clamp fully before removing or repositioning any workpiece.
