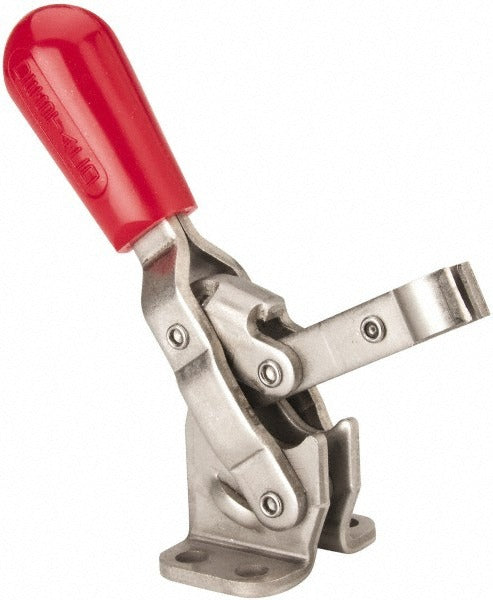

De-sta-co 202-SS Toggle Clamp Vertical 250 Lb Flanged Base

Product Description

The DE-STA-CO 202-SS is a manual hold-down toggle clamp designed for vertical clamping applications requiring a secure, repeatable hold. Built entirely from stainless steel with a zinc finish coating, it delivers a holding capacity of 250 pounds (1,110 N) through a solid bar with a fixed spindle end. The flanged base provides four-point mounting for rigid fixture integration. A 65-degree handle movement drives a 105-degree bar opening, giving operators quick workpiece release and engagement. Machinists, fixture builders, welding shops, and production assemblers use this clamp where corrosion resistance and consistent clamping force matter.

The 202-SS fits vertical hold-down applications in light industrial and manufacturing environments. Its compact overall length of 2.31 inches and overall height of 4.33 inches suit tight fixture layouts and jig plates. The M6x1 spindle thread allows fine clamping-height adjustment. The clamp ships with two nuts and a hex head spindle, ready for immediate installation on flanged base fixtures. It is appropriate for use in welding jigs, assembly fixtures, woodworking setups, and quality-control inspection stations where stainless steel construction is preferred for washdown or corrosive environments.

Key Features

• 250 lb (1,110 N) holding capacity for reliable workpiece retention
• Stainless steel body and handle with zinc finish coating for corrosion resistance
• 105-degree bar opening for fast workpiece loading and unloading
• Flanged base with four mounting holes for rigid fixture attachment
• M6x1 adjustable spindle with fixed spindle bar end for clamping height fine-tuning
• Includes two nuts and a hex head spindle - no additional hardware required for basic installation

Compatibility

Designed as an OEM-style replacement or direct-install vertical hold-down toggle clamp for standard flanged-base fixture applications. Confirm mounting hole spacing and bar-opening clearance against your fixture design before installation.

Installation Notes

Installation is performed by toolmakers, fixture builders, or maintenance technicians using standard hand tools. Secure the flanged base through all four mounting holes to a rigid fixture plate before applying clamping load. Verify that the bar-opening arc (105 degrees) clears all workpiece and fixture features throughout the full range of handle travel. Do not exceed the rated 250 lb holding capacity, and confirm spindle height adjustment is locked with the supplied nuts before production use.
