De-sta-co 202-B Toggle Clamp Vertical 200 Lb

Product Description

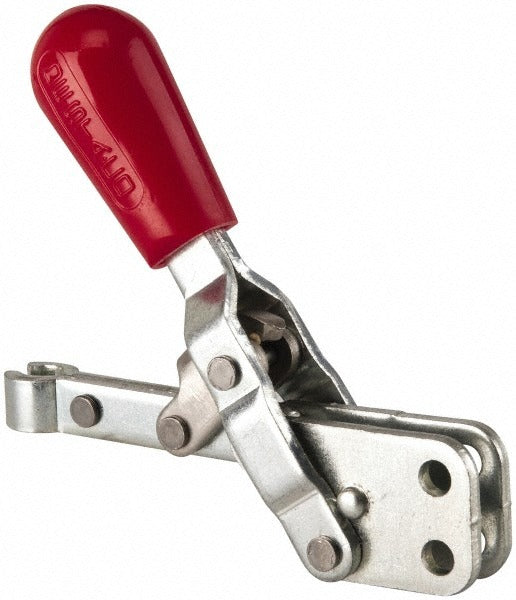

The DE-STA-CO 202-B is a manual hold-down toggle clamp designed for vertical clamping applications in light industrial, fabrication, and assembly environments. Rated at 200 lb (890 N) holding capacity, it uses a solid bar with a fixed spindle end and a straight base to secure workpieces firmly during machining, welding, or fixture operations. The carbon steel construction with a zinc finish provides corrosion resistance for shop-floor conditions. Handle movement spans 65 degrees and the bar opens to 105 degrees, allowing fast, repeatable one-handed actuation. A red straight handle and M6x1.0 spindle thread are standard.

The 202-B is suited for use in jigs, fixtures, and production tooling where a compact vertical clamp with a low profile is required. Its 2.31-inch overall length and 4.78-inch overall height fit tight fixture layouts. The straight base with four mounting holes and a 0.49-inch length and 0.24-inch width between mount hole centers allows for straightforward base plate integration. Ships with two flanged washers, two nuts, and a spindle.

Key Features

• 200 lb (890 N) holding capacity for reliable workpiece retention
• Vertical handle orientation with 65-degree handle movement for quick actuation
• 105-degree bar opening for easy workpiece loading and unloading
• Solid bar with fixed M6x1.0 spindle thread for adjustable clamping height
• Carbon steel body and handle with zinc finish for shop durability
• Includes two flanged washers, two nuts, and spindle for complete installation

Compatibility

Designed as an OEM-style replacement or direct-fit addition to standard toggle clamp fixture plates and production jigs requiring a vertical hold-down clamp with a straight base mounting pattern.

Installation Notes

Installation is typically performed by machinists, fixture builders, or maintenance technicians. Mount the straight base to a fixture plate using four fasteners through the 0.22-inch diameter mounting holes. Adjust the M6x1.0 spindle to the correct clamping height before final tightening. Verify the clamp locks fully into the over-center position under load before use in a production cycle.
