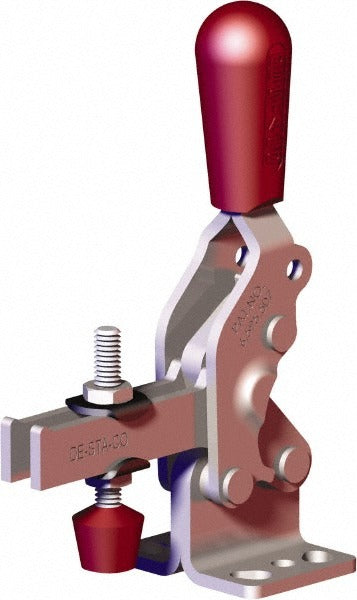

De-sta-co 2002-U207 Toggle Clamp 606.98 Lb Vertical

Product Description

The DE-STA-CO 2002-U207 is a manual hold-down toggle clamp designed for vertical clamping applications in production, assembly, and fixturing work. It delivers a holding capacity of 606.98 pounds (2700 N) through a straight-handle, U-bar mechanism mounted on a flanged base. The handle travels 72 degrees to lock, and the bar opens 90 degrees for part loading and unloading. Constructed from carbon steel, this clamp is built for repeated use in industrial environments where consistent clamping force is required. It ships with flanged washers and a spindle assembly included.

This clamp fits into vertical hold-down applications common in welding fixtures, machining setups, assembly jigs, and other workholding configurations. The flanged base with six mounting holes allows for rigid surface mounting. The fixed spindle bar end provides direct contact clamping pressure without adjustment during the clamping cycle. It is typically installed by machinists, toolmakers, fabricators, and assembly technicians working with production fixtures.

Key Features

• 606.98 lb (2700 N) holding capacity for demanding fixturing applications
• Vertical handle orientation with 72-degree handle movement for compact operation
• U-bar design with 90-degree bar opening for easy part access
• Flanged base with six mounting holes for secure surface attachment
• Fixed spindle bar end included with flanged washers and spindle assembly
• Carbon steel construction with red-handled grip for visual identification

Compatibility

Designed as an OEM-style replacement or direct-fit component for vertical hold-down toggle clamp applications in industrial fixturing and workholding systems.

Installation Notes

Install by a qualified toolmaker, machinist, or fixture builder. Ensure the mounting surface is flat and rigid before securing through the six-hole flanged base pattern. Power down or de-energize any automated equipment before servicing or repositioning clamps in a live fixture. Do not exceed the rated holding capacity of 606.98 pounds in service.
