Dayton Lamina 6-34 Spring Cage 4.25in Oal 0.75in Od

Product Description

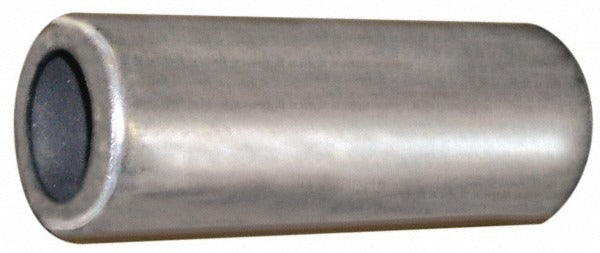

The DAYTON LAMINA 6-34 is a steel spring cage designed to guide and retain die springs in stamping and metal-forming tooling applications. The cage measures 4.25 inches overall length with a 0.75-inch outside diameter, providing a compact form factor suited for standard tooling configurations. It is constructed from steel for durability under cyclic load conditions typical of press tooling. Tool and die makers, mold makers, and maintenance technicians working on stamping presses are the primary installers of this component.

This spring cage is used in industrial tooling environments, primarily in stamping dies, progressive dies, and metal-forming fixtures where controlled spring travel and alignment are required. The 0.75-inch OD suits standard spring pocket bores common in these tooling setups. It is intended for use in production tooling maintained by toolroom professionals and die maintenance crews in manufacturing facilities.

Key Features

• 4.25 inches overall length provides adequate spring travel clearance for standard die applications
• 0.75-inch outside diameter fits common spring pocket dimensions in stamping tooling
• Steel construction resists deformation under repetitive compressive loads
• Compact cage design keeps die springs aligned and contained during press cycles

Compatibility

Designed as an OEM-style replacement spring cage for industrial stamping die and metal-forming tooling assemblies using 0.75-inch OD die springs.

Installation Notes
