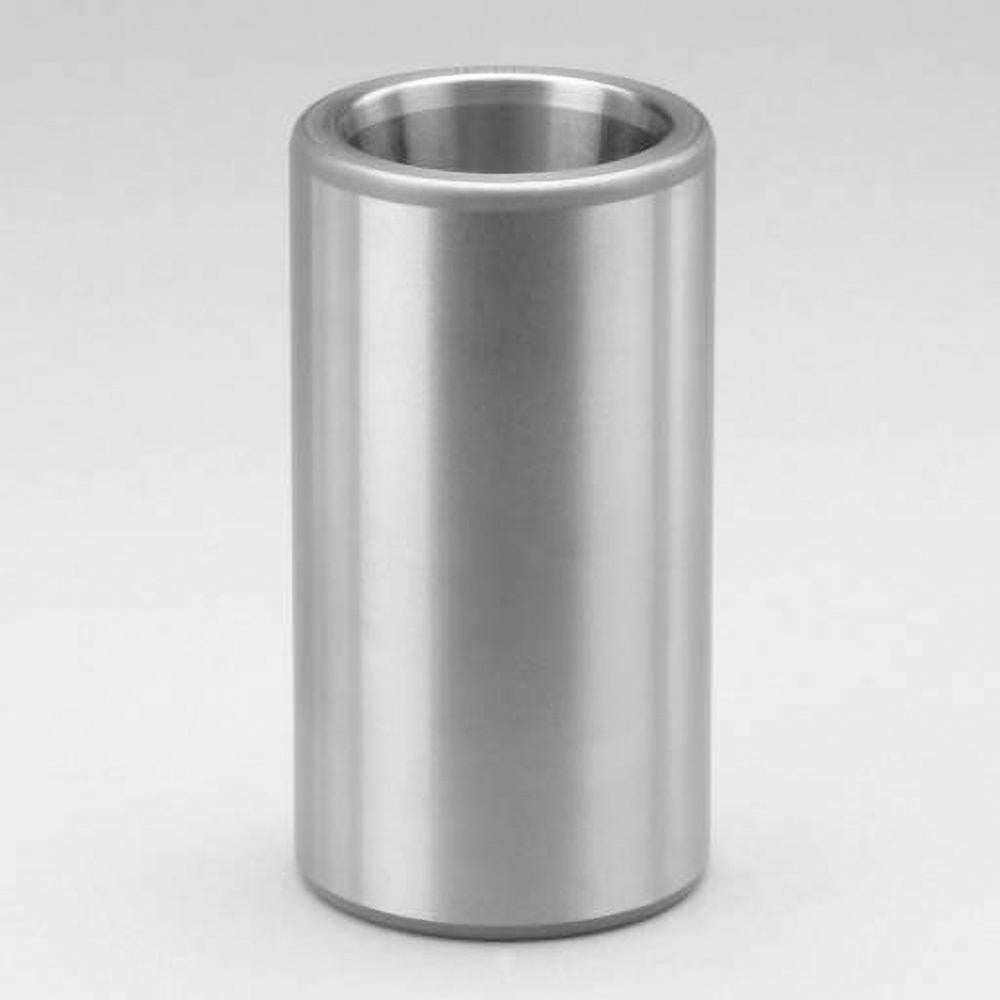

Dayton Lamina 6-1224-86 Die Mold Solid Sleeve

Product Description

The DAYTON LAMINA 6-1224-86 is a die mold solid sleeve designed for use in precision tooling and die set applications. This sleeve features a 1-7/8 inch inner diameter, a 2-1/2 inch outer diameter, and a 6 inch overall length. Constructed from hardened steel, it provides the dimensional stability and wear resistance required in high-cycle press and stamping operations. The 1-1/2 inch post diameter spec makes it compatible with standard die post configurations. At 5 pounds, the sleeve is a solid, substantial component suited for demanding industrial tooling environments. Installation is typically handled by tool and die makers or precision machining professionals.

This solid sleeve is used in die sets and mold bases where a hardened, close-tolerance guide sleeve is required. Common applications include stamping dies, injection mold bases, and progressive die tooling used in metal fabrication and plastics manufacturing. The hardened steel construction supports repeated insertion and removal cycles without deformation, making it a reliable component in production tooling assemblies.

Key Features

• Hardened steel construction for wear resistance and dimensional stability in high-cycle tooling
• 1-7/8 inch inner diameter for precise post fit
• 2-1/2 inch outer diameter for secure press-fit into die set bores
• 6 inch overall length suits deep die set configurations
• Solid sleeve design eliminates ball retainer maintenance

Compatibility

Designed as an OEM-style replacement or direct-fit component for die sets and mold bases requiring a solid guide sleeve with a 1-7/8 inch ID and 1-1/2 inch post diameter.

Installation Notes

Installation is performed by qualified tool and die makers or precision machinists. The mating die set should be fully de-energized and the press locked out before sleeve removal or installation. Press-fit sleeves typically require an arbor press and proper alignment fixtures to avoid bore damage. Verify bore dimensions and surface finish before installation to ensure proper fit and alignment.
