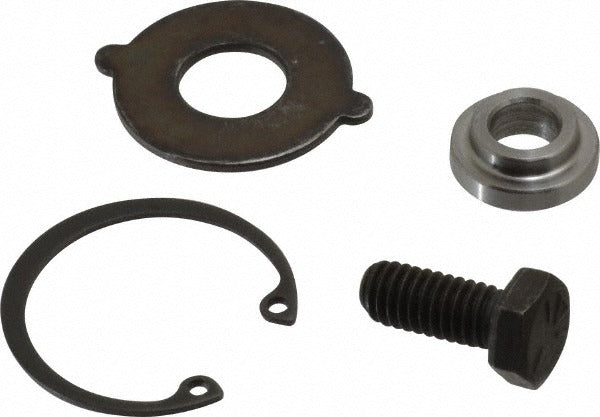

Dayton Lamina 6-0010-822 Type Ii Washer Assembly

Product Description

The DAYTON LAMINA 6-0010-822 is a Type II Washer Assembly designed for use with standard die set components in industrial tooling and stamping applications. Built to work with a 1-1/4 inch post diameter and a 5/16-18 thread size, this washer assembly provides secure retention and alignment at the post head. It is a compact, low-profile hardware component that integrates into die set guide post systems. Toolmakers, die setters, and machine shop technicians install this part during die set assembly or maintenance. Its lightweight construction, at 0.07 pounds, makes handling and installation straightforward in bench or press environments.

This washer assembly is suited for use in press tool die sets where guide post retention hardware must meet consistent dimensional standards. It is applicable in both production stamping operations and tool room settings. The 1-1/4 inch post diameter and 5/16-18 thread specification make it compatible with standard Type II post configurations used across the metal forming and fabrication industry. This part is a direct-style replacement component for die maintenance programs and tooling rebuild projects.

Key Features

• Type II washer assembly designed for guide post die set applications
• 1-1/4 inch post diameter for precise post fitment
• 5/16-18 thread size for secure fastener engagement
• Lightweight at 0.07 pounds for easy bench handling
• Consistent dimensional spec supports use in production and tool room environments

Compatibility

Designed as an OEM-style replacement washer assembly for Type II guide post die set configurations with a 1-1/4 inch post diameter and 5/16-18 thread specification.

Installation Notes

Installation is performed by toolmakers or die setters during die set assembly or component replacement. Ensure the press or machine is fully de-energized and the die set is removed from the press before servicing post hardware. Use appropriate hand tools to seat the washer assembly flush against the post shoulder without over-torquing the retaining fastener. Follow applicable shop safety procedures and refer to the die set manufacturer documentation for post retention requirements.
