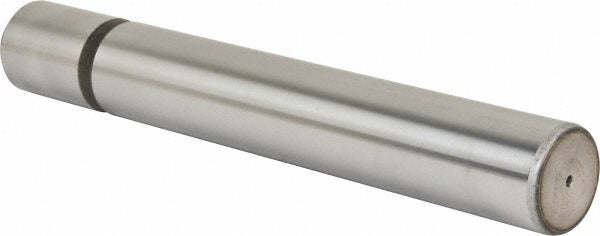

Dayton Lamina 5-1656-1 Guide Post 2 in Od 14 in Hardened Steel

Product Description

The DAYTON LAMINA 5-1656-1 is a press-fit friction guide post designed for use in stamping dies, molds, and precision tooling assemblies. With a 2-inch outer diameter and a 14-inch overall length, this post provides the lateral guidance and alignment necessary to maintain accurate upper and lower die shoe registration during press operations. Constructed from hardened steel with a chrome-plated finish, it delivers the surface hardness and wear resistance required for high-cycle tooling environments. Installation is handled by tool and die makers or precision machining professionals working in metal stamping and forming applications.

This guide post is suited for die sets used in progressive, compound, and single-station stamping operations across both production and toolroom environments. The press-fit attachment method allows the post to be driven into the die shoe bore without threading or mechanical fasteners, making it a standard component in conventional die set construction. It is appropriate for applications where consistent post-to-bushing clearance and surface finish are critical to part accuracy and tool longevity.

Key Features

• Press-fit attachment method for secure, interference-fit installation in die shoe bores
• 2-inch outer diameter provides substantial lateral support for larger die sets
• 14-inch overall length accommodates applications requiring extended post travel or thicker die components
• Hardened steel construction resists wear and deformation under repeated press cycling
• Chrome-plated finish improves surface hardness and lubricity for smooth bushing engagement

Compatibility

Designed as an OEM-style replacement or direct-fit component for die sets and tooling assemblies requiring a press-fit friction guide post with a 2-inch body diameter and 14-inch overall length.

Installation Notes

Installation is typically performed by tool and die makers using an arbor press or hydraulic press to drive the post into the mating die shoe bore. Ensure the bore diameter matches the post OD tolerance for the required interference fit before pressing. Inspect the bore and post seating surface for burrs or damage prior to installation. Do not hammer directly on the post end face without a proper driver block, as this can damage the chrome-plated surface and affect bushing alignment.
