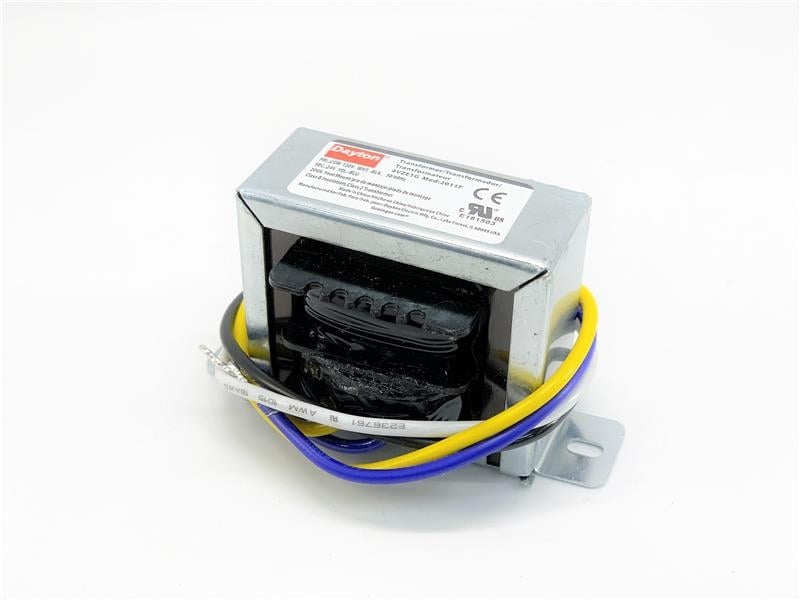

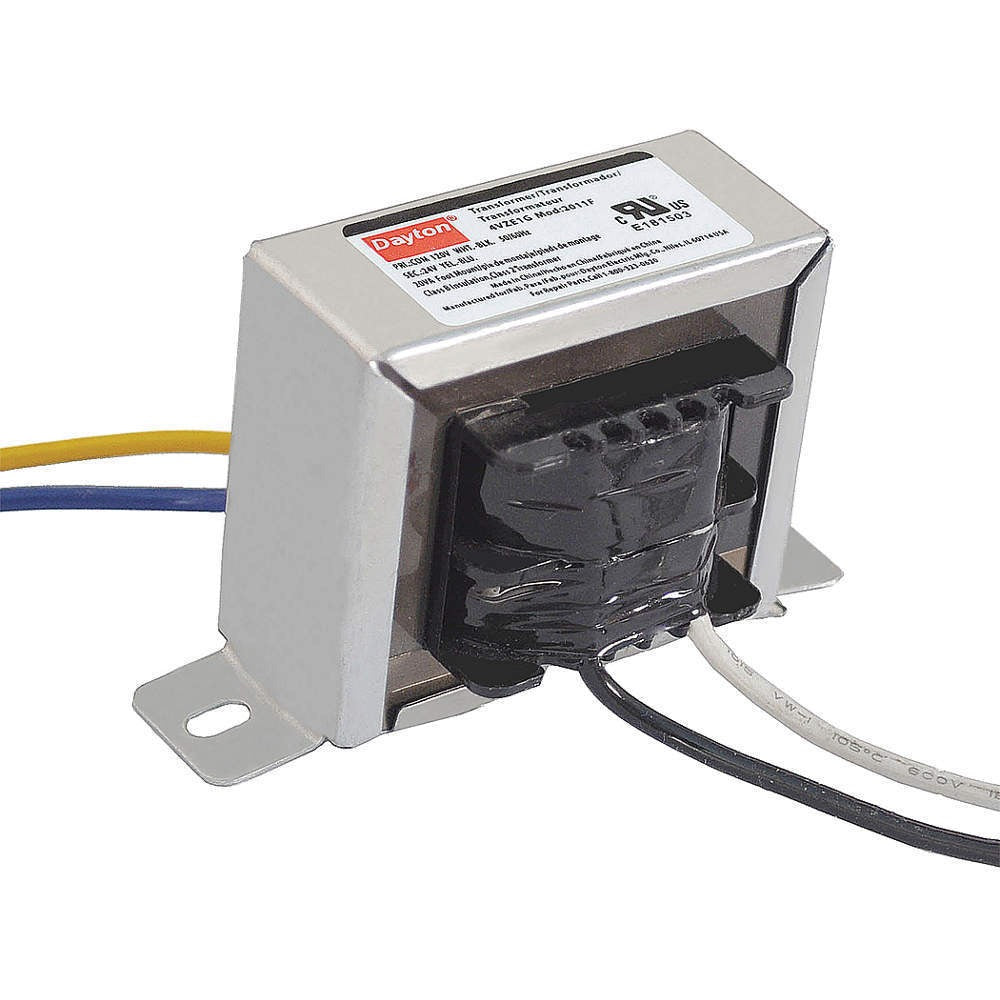

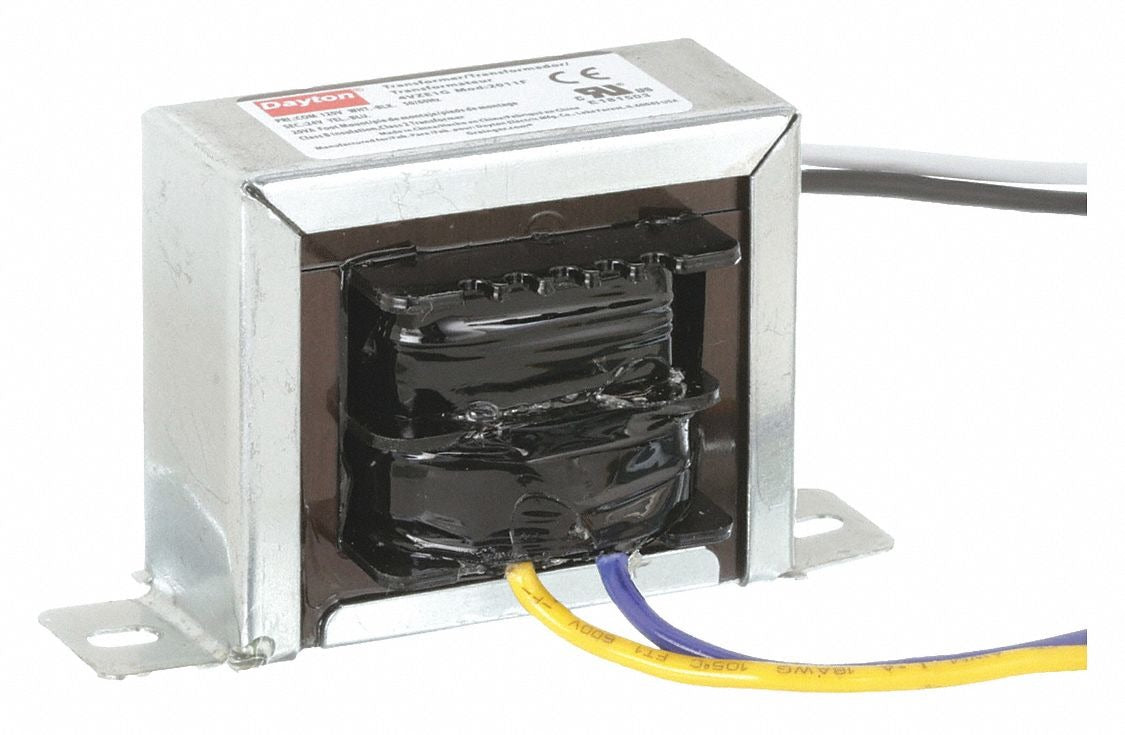

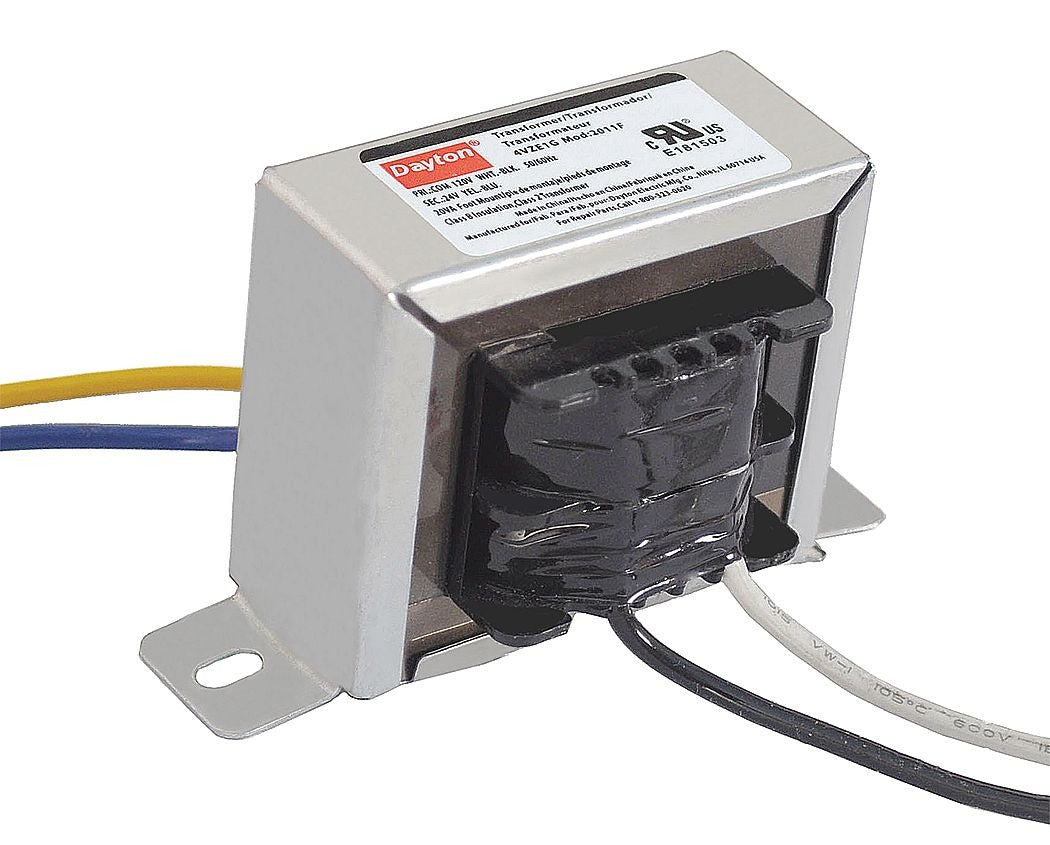

Dayton 4VZE1 Class 2 Transformer 20 VA (Foot Mount)

Product Description

The Dayton 4VZE1 is a Class 2 transformer rated 20 VA with a 120 VAC primary and 24 VAC secondary. It operates single-phase at 50/60 Hz in an open-frame, foot-mounted design with wire-lead primary and secondary connections and a coil protector; temperature rise is 65°C (149°F). Dimensions are 3.3 in W x 1.9 in H x 1.8 in D. It is cURus listed (UL File E181503) and suited for HVAC and low-voltage control circuits.

• Electrical rating: 20 VA; Input 120 VAC; Output 24 VAC; 50/60 Hz; single-phase
• Mechanical: open-frame enclosure, foot mounting, dimensions 3.3 in W x 1.9 in H x 1.8 in D; primary and secondary wire-lead connections
• Protection and compliance: coil protector; temperature rise 65°C (149°F); cURus listed (UL File E181503); Class 2

Product Highlights

Class 2, 20 VA control transformer; 120V to 24V AC; open-frame foot mount; wire-lead terminations; cURus/UL listed

Product Information

Standard Information

• Brand: DAYTON
• Manufacturer Part Number: 4VZE1
• Country of Origin: Vietnam
