Dauer Manufacturing 490020 Zen Path Light 6.3 inches Hat

Product Description

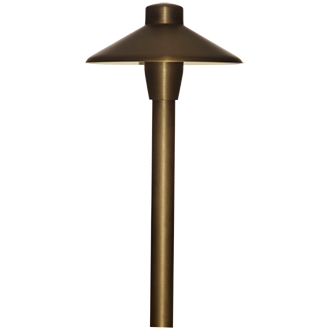

The Dauer MANUFACTURING 490020 Zen cast brass path light features an enclosed socket with a clear lens and a 6.3-inch diameter hat. It has a reflective powder-coat interior. Stem options are not included. It may be mounted into threaded hubs in junction boxes or other mounting accessories.

• Brass drop-in
• Enclosed socket
• Reflective powder-coat interior

Product Highlights

The Zen path light is pre-wired with a 5' pigtail of 18/2 cable. It uses a fixed ceramic bi-pin socket and is compatible with 12V bi-pin lamps, LED recommended. Halogen 35W maximum or 6W LED maximum.

Product Information

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 490020

Technical Specifications

• Housing: Cast brass
• Finish: Weathered brass
• Lens: Polycarbonate
• Socket/Lamp Holder: One fixed ceramic bi-pin socket in stem accepts bi-pin lamps with G4 or GY6.35 bases
• Lamp Type: 12V bi-pin. LED recommended. Halogen 35W maximum or 6W LED maximum.
• Mounting: May be mounted into threaded hubs in junction boxes or other mounting accessories.
• Wiring: Pre-wired with 5' pigtail of 18/2 cable
• Width: 6.3"
