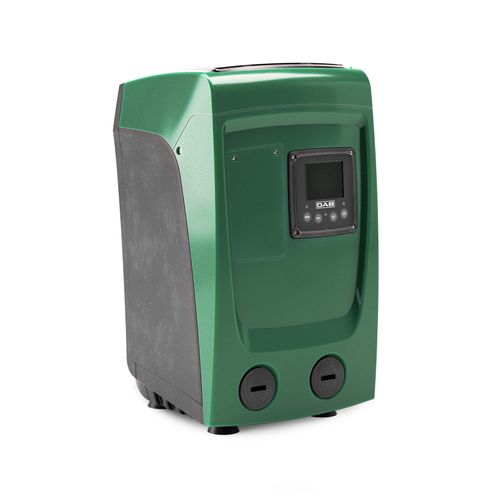

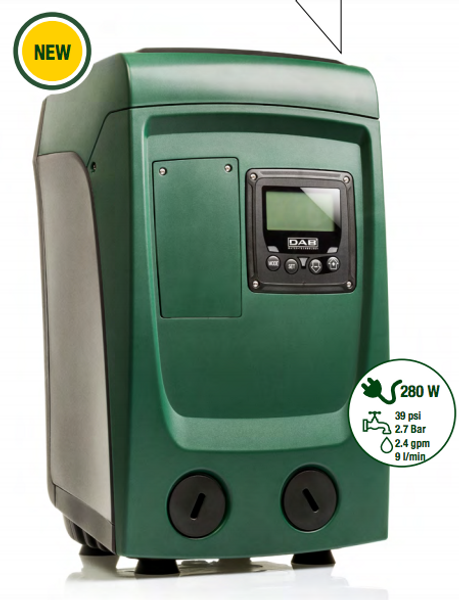

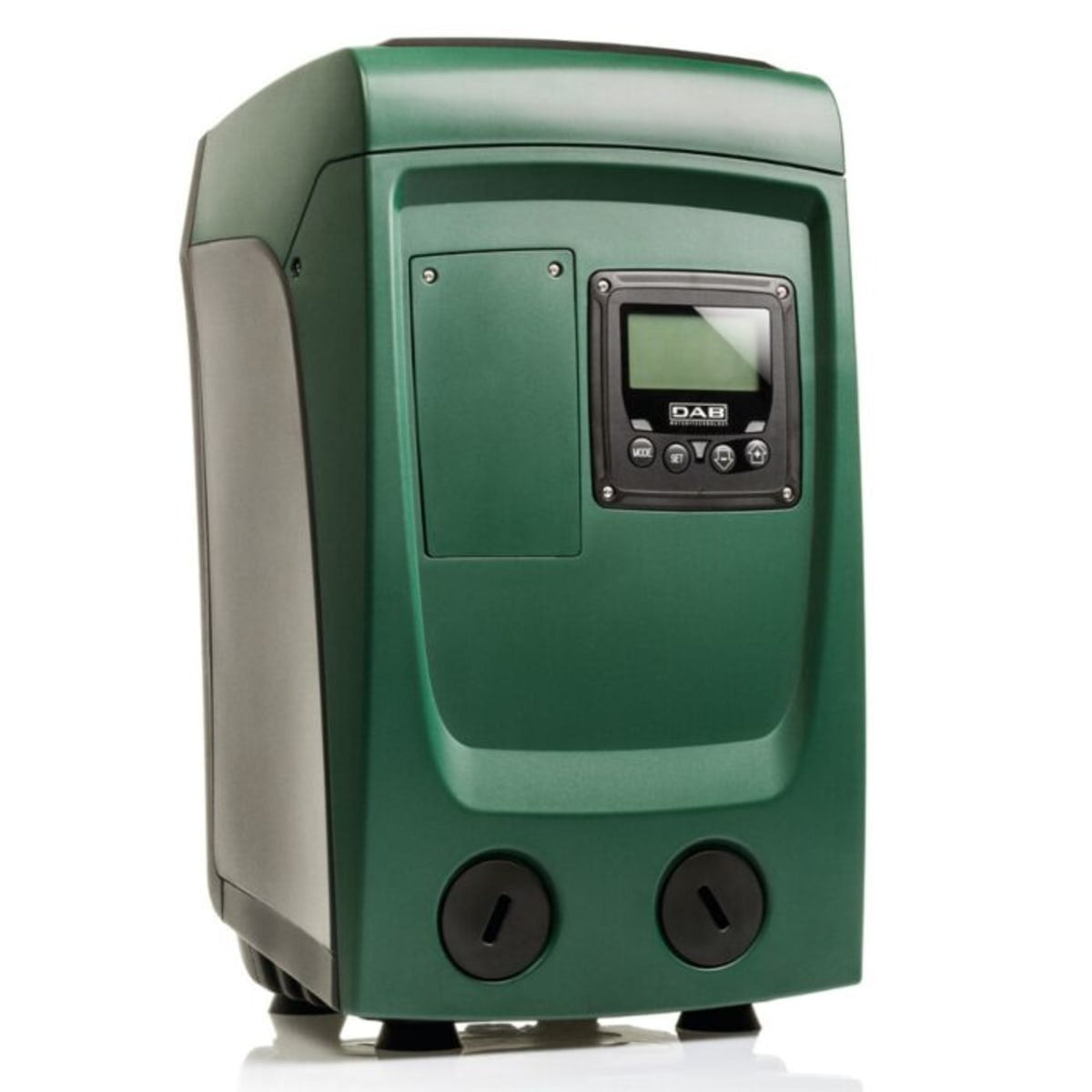

DAP Pump 60212610 DAP PUMP Esybox Mini 3 On-Demand Constant Pressure Variable Speed Pump

Product Description

The DAP PUMP Esybox Mini 3 is an automatic pressurization system designed to supply consistent water pressure to residential applications. With an adjustable pressure range from fifteen to seventy-nine psi, it is suitable for various domestic uses including gardening. This pump integrates advanced features such as a self-priming double impeller, inverter management electronics, pressure sensors, flow sensors, and an LCD display for easy monitoring. It also includes a built-in expansion vessel and check valve for efficient operation. Installation is simplified as it can be set up either horizontally or vertically.

• Maintains constant pressure based on system demand.
• Self-priming pump with a capability up to twenty-six feet in under five minutes.
• Incorporates dry run and antifreeze protections.

Product Highlights

This system ensures a reliable water supply with no need for additional components during installation.

Product Information

Standard Information

• Operating Range: Capacity up to twenty-two gallons per minute; head up to one hundred eighty-three feet.
• Input Voltage: Dual voltage one hundred fifteen/two hundred thirty volts.

Technical Specifications

• Current at 115V: nine point six Amps.
• Current at 220V: four point eight Amps.
• Liquid Quality Requirements: Clean, free from solid or abrasive contaminants.
• Liquid Temperature Range: From thirty-two degrees Fahrenheit to ninety-five degrees Fahrenheit for domestic use.
• Maximum Suction Depth: twenty-six feet.
• Maximum Ambient Temperature: one hundred twenty-two degrees Fahrenheit.
• Maximum Pressure: one hundred eight psi.
• Motor Protection Rating: IPX4.
• Installation: Horizontal or vertical.
