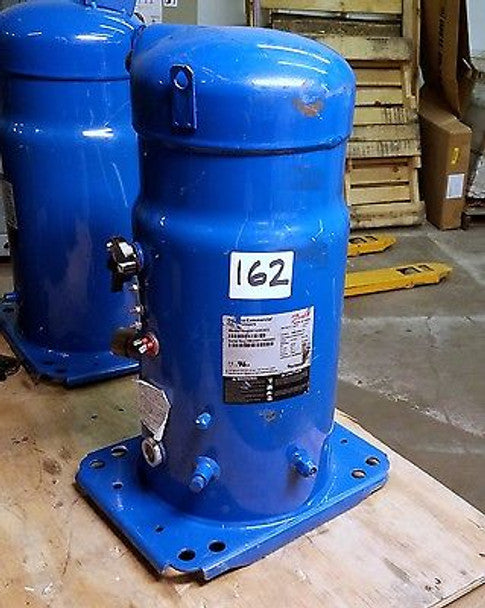

Danfoss SM125-3CAI Scroll Compressor 208-230V (Single Pack) SM125-3CAI

Product Description

The Danfoss SM125-3CAI is a three-phase scroll compressor rated for 208–230 V and configured for R-22 refrigerant for air conditioning and refrigeration systems. It provides fixed-speed scroll compression with brazed suction and discharge connections and internal thermostat motor protection; an external overload protector is required. The unit ships with mineral oil (160P) and an initial oil charge of 3.8 L, and is rated for 60 Hz operation with nominal speed about 3500 rpm.

• Rated 208–230 V, 3-phase, fixed-speed scroll compressor for use with R-22 refrigerant
• Supplied with mineral oil (160P) and 3.8 L initial oil charge; brazed suction and discharge connections
• IP54 (with cable gland), internal thermostat motor protection, LP Schrader service port, approvals CE/UL/UKCA

Product Highlights

Hermetic scroll compressor for commercial air conditioning and refrigeration — 208–230V 3-phase, R-22, 3.8 L oil charge, IP54, CE/UL/UKCA

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: SM125-3CAI
• Country of Origin: China
